Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Rated Power/Speed
35.9/2000kw/Rpm
Maximum Torque/Speed
200.8/1400n.M
Piston Displacement
3.054L
Travel Speed(H/L)
4.2/2.4km/H
Bucket Digging Force
48.3kN
Maximum Tractive Force
50.5kN
Standard Track Shoe Width
400mm
Transport Package
Naked Packaging
Specification
6010*2040*2650
Packaging & Delivery
Package Size
601.00cm * 204.00cm * 265.00cm
Package Gross Weight
6050.000kg
Product Description
Product Description
The customized low-speed and high-torque engine is precisely matched with the hydraulic system, which reduces fuel consumption by more than 5%, increases the fuel tank volume by 18%, increases the body and chassis size, matches with the large-capacity bucket, which makes the operation more stable and powerful, and comes with the hydraulic lock of the bulldozer as a standard feature, which guards the safety of the driver;
Newly optimised second generation main valve, soft control, smooth movement, more accurate micro-operation, maintenance-free slewing motor, slewing torque increased by 13%, slewing operation easier, main pump response is more efficient.
Maintenance-free slewing motor, slewing torque increased by 13%, slewing operation is more relaxed, the response speed of the main pump is improved, the system response is fast, and there is no delay in the action;
Extra-large luxury cab, one key start switch, touch high-definition instrumentation, the whole vehicle information in the hands of the car Bluetooth, a variety of sound modes of the audio system.
sound system with multiple sound modes;
Vehicle-level NVH optimisation, lower vibration noise; high-power automatic cooling and heating air-conditioning, three-dimensional surround air supply; sealed cab, standard with fresh air system; flip-up luxury cab, touch HD instrumentation, full information mastery, in-car Bluetooth, multiple sound modes sound system.
Fresh air system as standard; Flip-type armrest box, cab through the space increased by 15%;
Large hood opening angle, convenient maintenance, radiator, engine three filters, cabin internal parts maintenance at a glance, at your fingertips;
A variety of bucket specifications can be selected, optional crushing hammer, auger and other equipment to meet the needs of different working conditions.
Product Parameters

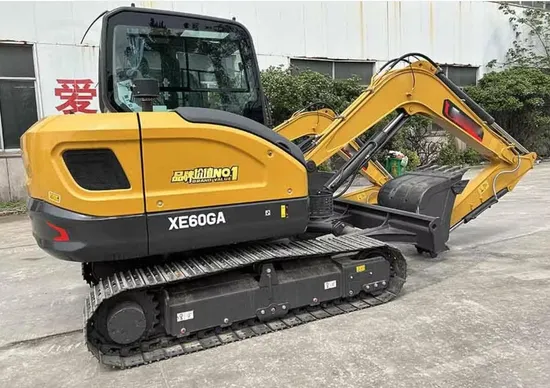

Project | Unit | XE60GA |
Operating weight | Kg | 6050 |
Bucket capacity | m³ | 0.25 |
Rated engine power | kW/rpm | 35.9/2000 |
Bucket digging force | kN | 48.3 |
Key Features:
With independent core matching technology, the customised low-speed and high-torque engine is accurately matched with the new electronically controlled load-sensitive system; the new generation of main valves further optimises the co-ordination of movements, improving the levelling efficiency, loading and dumping speed.With the new wind positive pressure cab, car-level NVH comfort and convenient man-machine exchange, the customer experience is greatly improved, and the use is economical and reliable.
Applications:
Urban and rural construction, road construction
The renovation of utilities and transport
Municipal, landscaping, farmland improvement
Construction and production of pipelines Company Profile
Certifications
Packaging & Shipping
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
