High Efficiency Planetary Concrete Mixer Pneumatic System for Sale Cement Mixer
| US$10,000.00-30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Planetary Concrete Mixer
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
800kg
Feeding Height
1380mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Core Components
Motor, Gearbox
Discharge Height
Customization
Discharge Way
Pneumatic/ Hydraulic Disc
Water Supply Mode
Water Pump
Transport Package
Nude
Specification
1870*1870*1855mm
Trademark
XINTU
Origin
China
HS Code
847431
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
5000.000kg
Product Description

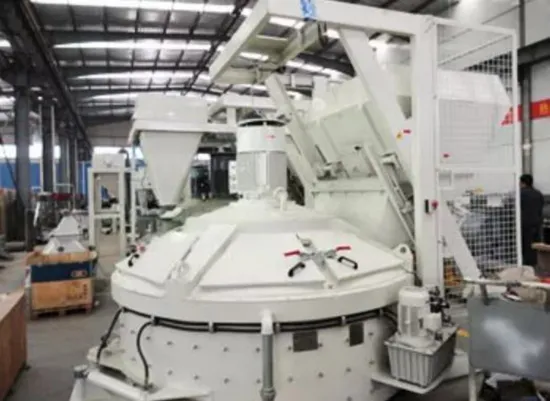

MP series Planetary Concrete Mixer, is researched, developed and manufactured using advanced Technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete ,refractory mixer etc.It also have solved many mixing problems about HPC (High Performance Concrete).Features of Planetary Concrete Mixer:
1 Strong, Steady, Fast and Homogeneous Mixing Performance
2 Vertical Shaft,Planetary Mixing Motion Track
3 Compact Structure, No Slurry Leakage Problem, Economic and Durable
4 Hydraulic or Pneumatic Discharging
Equipment parameter:
| Outp capacity | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Input capacity(L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
| Input capacity(kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
| Mixing power(kw) | 3 | 5.5 | 2.2 | 11 | 15 | 18.5 | 30 | 37 | 55 | 75 | 90 | 110 |
| Mixing blade | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/3 | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 |
| Side scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1100 | 1300 | 1500 | 2000 | 2400 | 3900 | 6200 | 7700 | 9500 | 11000 | 12000 |
| Dimension(mm) | 950 *790 *1200 | 2021670 *1460 *1450 | 1670 *1460 *1620 | 1860 *1650 *1780 | 1870 *1870 *1855 | 2230 *2080 *1880 | 2580 *2340 *2195 | 2890 *2602 *2220 | 3230 *2902 *2470 | 3625 *3230 *2630 | 3900 *3550 *2695 | 3900 *3550 *2975 |
