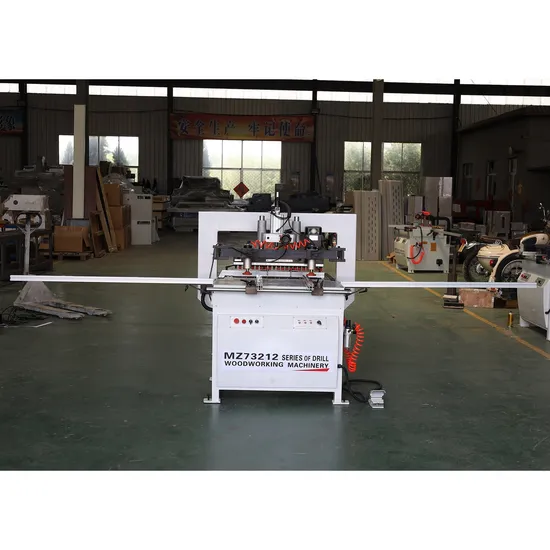

Intelligent Drilling Machine to Improve Woodworking Precision and Efficiency
| US$1,700.00-1,950.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YZ-MZ73212
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
Artificial
Number of Shaft
21PCS*2
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Length
57/70mm
Total Quantity of Drill Lines
1
Max. Drilling Depth
50mm
Workpiece Thickness
8-50mm
Spindle Speed
2840rpm
Max. Center Distance Between Holes
600*640mm
Min. Center Distance Between Holes
50*32mm
Max.Drilling Diameter
35mm(Single Bit)13mm(Multi Bits)
Transport Package
Stretch Film or Wooden Packaging
Specification
1400*1300*1400mm
Trademark
YINGZHUO
Origin
China
HS Code
84659500
Production Capacity
8000pieces/Year
Packaging & Delivery
Package Size
140.00cm * 130.00cm * 140.00cm
Package Gross Weight
650.000kg
Product Description
YINGZHUO is a professional machinery and equipment technical enterprise combines the scientific research,explore,manufacture,sales and service together.The company's motto is ''Customer first. Good will is the best policy'' Accordingly. it pures high quality goods and customer service and has won the titles ''High Standard'',''Fine Quality'', ''Famous Brand'' and ''Excellent Service'' from the government.
Furthermore,its products are all ISO9001 2008 and CE certified.We here at YINGZHUO are dedicated to continually perfecting our performance and providing high quality goods in appreciation for the support and cooperation of our customers. Product Description
| Model | YZ-MZ73211 | YZ-MZ73212 | YZ-MZ73213 |
| Installation tool length | 57/70mm | 57/70mm | 57/70mm |
| Dia. of drill bit shaft | 10mm | 10mm | 10mm |
| Max. drilling depth | 50mm | 50mm | 50mm |
| Max. drilling diameter | 35mm (single bit) 13mm(multi bits) | 35mm (single bit) 13mm(multi bits) | 35mm (single bit) 13mm(multi bits) |
| Total quantity of drill lines | 1 | 2 | 3 |
| Total quantity of spindles | 21pcs*2 | 21pcs*2 | 21pcs*2 |
| Workpiece Thickness | 8-50mm | 8-50mm | 8-50mm |
| Weight | 400kg | 650kg | 800kg |
| Voltage | 220v/380v/415v | 220v/380v/415v | 220v/380v/415v |
1. The machine is a porous processing machinery which can tilt 0-90°.
2. It can select appropriate cutting feed speed and adjusted drilling depth by adjustable air flow based on drilling hole size and plate hardness.
3. It can drill board in vertical and horizontal direction at the same time, convenient and flexible operation, multi-usage, high efficiency, large dimension plates.
4. It is a indispensable equipment in furniture factory, cabinet factory and other wood company.
Certifications
Packaging & Shipping
