Estop High Precision 5 Axis CNC Duplex Metal Milling Machine

Product Description

Product Description

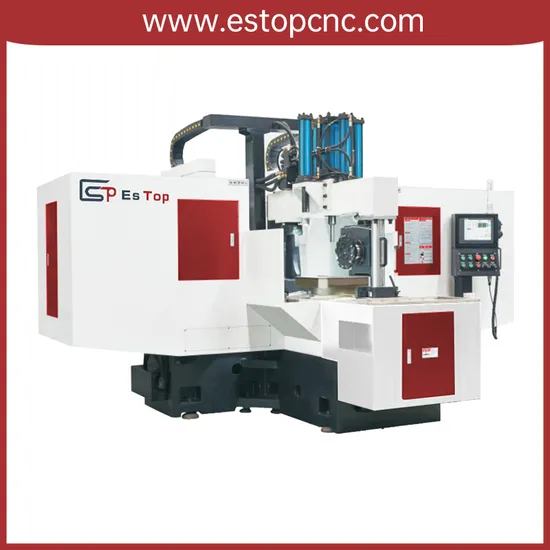

Estop High Precision 5 Axis CNC Duplex Metal Milling Machine
The ESTOP series of duplex milling machines make it simple to machine precision angles and dimensions on blocks and plates for any application.
-Easy to use input screen for parameters.
-Once the cycle is complete, the clamps retract and the finished part can be removed and replaced with the next.
-Continuously summarize and improve through long-term operational practice, develop and improve various functions, make it easier to operate, safer and faster.
More Products:
Product Parameters
Product Parameters:

Items	Name	Specification
GooDa CNC TWIN HEAD MILLING MACHINE TH-700NC		TH-700NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*2.0
	Sides Cutting W*L mm	30-700
Worktable	Dimensions mm	520*520
	Max loading weight	1200
Spindle	Spindle speed(Infinitely variable speeds) rpm:	50-500
	Spindle power KW	2*15
	Spindle taper	NT50
	Cutting diameter mm	250(Op300)
X axis	X/Y/Z axis motor power	2.3/2.3/3.6
Y axis	X/Y/Z Max feed speed m/min:	8000/8000/6000
Z axis	X/Y/Z Max cutting speed	6000/6000/6000
Accuracy	Squareness mm/300mm	0.02
	Accuracy for dimension mm/300mm	0.02
Tank capacity	Hydraulic oil tank L	50
	Lubrication oil tank L	3
Power	Power	AC380V/220 40KVA
Net weight	Machine net weight KG	10000

Main part of CNC TWIN HEAD MILLING MACHINE TH-700NC

ITEM	SPECIFICATIONS	QUANTITY
Main	CNC twin head milling machine NC Controller Mitsubishi system Model: TH- 700NC	1 set
Standard configuration	1.Servo motor rotary worktable 2. Screw type automatic cleaning 3. Tools and tools car 4.Closed house sheet metal 5. Full set of cushion/clamp 6. Workpiece automatic measuring 7. 90˚Workpiece positioning device 8. Air pressure system, blowing and automatic measurement 9. Working Light 10. Working status indicator light 11. Air cooling system electric box 12. Hydraulic system, single hydraulic cylinder clamping 13. Man-machine conversation system, automatic protection, diagnosis, display	1 set 2 sets 1 set 1 set 13 pcs 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set
Accessories	1.Face cutter 300mm (R&L) 2. Transformer (380V to 220V) 3. Scrap car	2 sets 1 set 1 set

Product Category
You can click on the picture to view the products you are interested in.
Our Service
Speed up your production and Achieve high quality with ESTopCNC.Revolutionizes your factory with ESTopCNC machine.
Installation:
You have decided to purchase products from ESTOP and now want to ensure that they are commissioned in a quick and hassle-free manner. Our installation service makes things as easy as possible.
Maintenance and repair:
Exceptionally high-quality machines require an exceptionally professional service. That's why it pays to bring in specialists. At ESTOP, we know our systems better than anyone else. But there is much more to a good service than this: we are easy to contact, offer prompt availability and boast motivated employees.
Spare parts:
Do you want to perform any repairs that become necessary yourself? Send us your name, part number and the quantity of the required spare parts. Your order will be processed by us immediately. The prompt delivery of ESTOP genuine spare parts is often crucial to ensure the fast repair of a system. The most popular spare parts are stocked in our factory in China.
Training:
To enable you as a user to work skilfully and safely with ESTOP's milling machine and to evaluate the acquired data in a professional manner, ESTOP offers in-house seminars.
Custom made:
Customized design outside of the typical condition.
Service contact:
Do you have a question for our Service Team or would you like to order new machine or spare parts? Professional and easy to contact - you will find the right person to speak to for any matter here.
Company Profile
Quality Control
Packaging & Shipping
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Dongguan city and Chongqing city.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is your minimum order quantity and warranty?
A3: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q4: How to ensure the quality?
A4: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q5: How do we get the training for the machines?
A5: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q6. What is your trade terms?
A6: FOB, CFR, CIF or others terms are all acceptable.
Q7. What is the payment Terms ?
A7: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q8. What is the package of the machines?
A8: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q9.When is the delivery time?
A9: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q10: How to deal with the after-sales service?
A10: 1. Technician available for training and installation at customer's company
2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
