Liquid Nitrogen Storage Tank 175L 195L 210L Laser Cutting Machine

Product Description

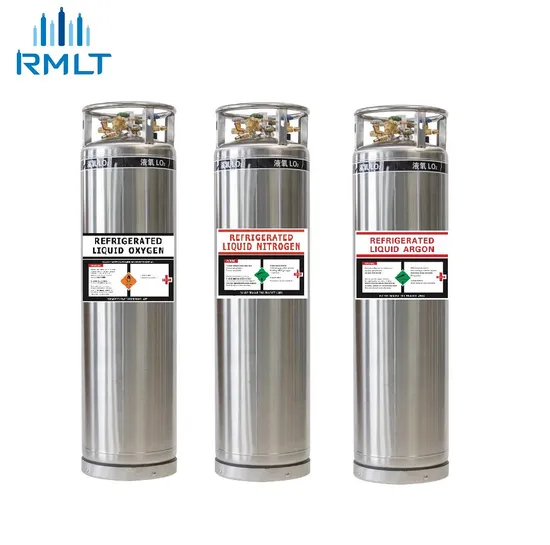

Cryogenic Liquid Cylinder
The cryogenic cylinders mainly used for the storage & transport & using of liquid argon/oxygen/nitrogen/carbon dioxide/LNG etc.
* Vaporizer installed inside can supply 10m3/h gas continuously
* Adopt the international standard connectors, all valves are imported brands.
* We can customize according to the customers.
* Damping ring design to make sure the transportation safely
* Are widely used in the industries of Chemical /machinery /shipbuilding/ hospital /electronic /medical /material /energy /research/fish-heat preservation, etc.
Advantages: Ideal for liquid nitrogen, oxygen, argon, CO2 or nitrous oxide Different sizes, pressure, and features to meet your needs Stainless steel bottle construction Thick, dent-resistant outer shell Durable inner-vessel support system Heavy-duty footring and large diameter handling ring with four supports Vertical Type of Cryogenic Liquid Cylinder

Model		DPL450-175-1.37	DPL450-175-2.3	DPL450-195-1.37	DPL450-195-2.3	DPL450-210-1.37	DPL450-210-2.3	DPL450-210-2.88
Geometric volume(L)		175	175	195	195	210	210	210
Effective Volume(L)		163	163	181	181	195	195	195
Size( diameter*height)(mm)		508*1498	508*1498	508*1624	508*1624	508*1718	508*1718	508*1718
Working pressure( Mpa)		1.37	2.3	1.37	2.3	1.37	2.3	2.88
Set pressure of main safety valve( Mpa)		1.59	2.41	1.59	2.41	1.59	2.41	3.1
Set pressure of bursting discset/Set pressure of assisant safety valve( Mpa)		2.5/2.41	3.84	2.5/2.41	3.84	2.5/2.41	3.84	4.9
Evaporation rate( Liquid nitrogen)		≤2.1%	≤2.1%	≤2.1%	≤2.1%	≤2.1%	≤2.1%	≤2.1%
Empty weight( kg)		115	138	121	145	128	153	173
Maximum filling weight(kg)	LO2(KG)	186	186	207	207	223	223	223
	LN2(KG)	131	131	146	146	157	157	157
	LAR(KG)	227	227	253	253	272	272	272
	LNG(KG)	69	~	77	~	82	~	~
	LCO2(KG)	~	188	~	209	~	225	225
Level gauge		float type	float type	float type	float type	float type	float type	float type
Surface treatment		Polishing	Polishing	Polishing	Polishing	Polishing	Polishing	Polishing
The base style		Rubber base	Rubber base	Rubber base	Rubber base	Rubber base	Rubber base	Rubber base

Horizontal Type of Cryogenic Liquid Cylinder

Model		DPW650-499-1.59	DPW650-499-2.5
Geometric volume(L)		499	499
Effective Volume(L)		449	449
Size( L*W*H)(mm)		2155*750*1035	2155*750*1035
Working pressure( Mpa)		1.59	2.5
Set pressure of main safety valve( Mpa)		1.72	2.75
Set pressure of bursting discset/Set pressure of assisant safety valve( Mpa)		2.41	3.84
Evaporation rate( Liquid nitrogen)		1.70%	1.70%
Empty weight( kg)		360	425
Maximum filling weight(kg)	LO2(KG)	511	511
	LN2(KG)	364	364
	LAR(KG)	629	629
	LNG(KG)	191	~
	LCO2(KG)	~	457
Level gauge		Capacitance	Capacitance
Surface treatment		Polishing	Polishing
The base style		Frame Style	Frame Style
