High Performance CNC Die Sinking Electric Spark Machine CNC1060

Product Description

High performance CNC die sinking electric spark machine CNC1060
1.The structure of the machine is designed by computer analysis of tension, compression and reaction force, so as to maintain the mechanical precision forever.
2,The castings are made of FC-35 resin sand. They are durable and have the same precision after natural wind and various treatments.
3,Machinery design uses computer aided design (CAD) to persist in processing the invariant structure of the machine body, and ensure the processing accuracy.
4,The sliding track adopts V-shape and plane design. It slides lightly under heavy pressure and has excellent precision.
5,The worktable surface is ground by high-wave heat treatment, and it is not easy to wear.
6,Both X and Y axes adopt imported or equivalent double nuts ball screw, which is light in transmission and easy to use.
7,The spindle adopts linear sliding track, which ensures the precision and durability forever.
8The trawler adopts imported "Tiefron" rail veneer.
Technical Indicators of Distribution Box:
Max. operating current≥60A Max. power consumption≤6KVA Max.Machining Speed≥450mmз/min
Min. electrode consumption≤0.3% Finest Surface RoughnessRa≤0.3µm output voltage90-260V
17-inch Famous LCD Display Taiwan Industrial Computer Taiwan imports dedicated circuit boards and world-renowned brand electronic components.
The standard configuration of spark machine is as follows:
Z-axis adopts Swiss-made or the same grade linear sliding track, Japanese NSK precision bearing.
Taiwan C7 X, Y ball screw, high precision Z-axis plastic steel wire rod.Japanese original "Sanyang" servo motor. W-axis deceleration motor (1:25 60W or 90W).
Taiwan imports precision handwheels, dial sets, electrode chucks, Grand Full pumping motors.
Quartz lamps, fire extinguishers, liquid level switches, door seals, oil throats, high-pressure oil pipes, pressure gauges are all imported from Taiwan.
Precision optical ruler (three axes).
Imported filter: 2
Machine paint is automobile paint, durable, beautiful and non-fading.

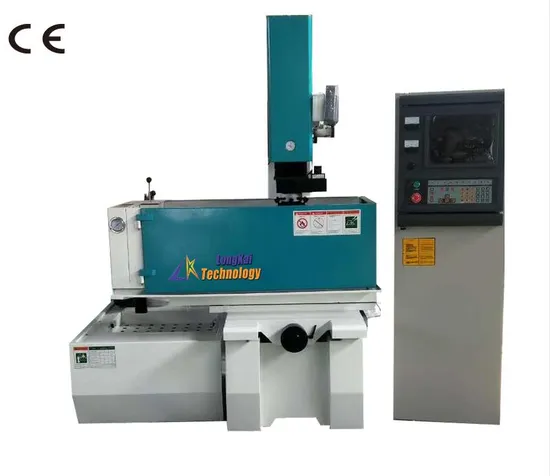

High Performance CNC Die Sinking Electric Spark Machine CNC1060

Solemnly declare that:
All the above products are guaranteed free of charge for one year and maintenance for life.
The above configuration and parameters may be changed. Please confirm and sign the bill.
Our main products :
* Servo Mid-speed WEDM machine
* Stepper medium speed wire cutting machine
* High efficiency fast Wire cutting
* CNC drilling machine
* Drilling EDM
* EDM molding machina
* Grinding machine
* Turret milling machine
* CNC drilling and milling machine
* CNC engraving and milling machine
* Vertical machining center
All the above products have passed CE, SGS certificates.
Our Strength:
* Over 12 years manufacturing experience in CNC lathe machine.
* The company abides by the concept of "providing high-quality,stable and cost-effective products and good services to the clients by relying on advanced and reliable technology,
* Always adheres to a large amount of research and development investment and continuous engineering improvement
* Longkai EDM machines are with high cutting accuracy, high cutting speed, high surface finish and high stability.
* We have always been in the leading position of the reciprocating wire cutting machine, electrical processing power and control technology.
After-sale Services:
Warranty is one year.
We would offer the parts (quality problem) free of charge during this period, freight collect.
