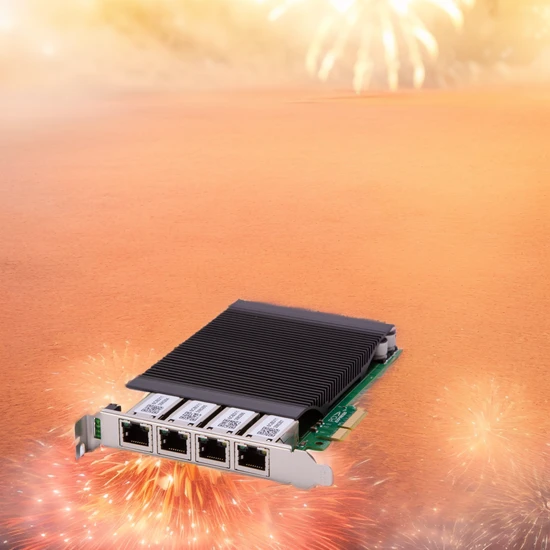

High-Speed Quad Port Gigabit Ethernet Card with Poe Technology

Product Description

MSS-APOE4 Specifications: Introducing the Quad Port Gigabit Ethernet Card with PoE Support from Shanghai Mss International Trade Co., Ltd. This industry-leading card provides four ports of high-speed gigabit Ethernet connectivity with Power over Ethernet (PoE) support. It is perfect for use with microscope accessories and wireled cards, offering reliable and efficient network connectivity. Upgrade your network infrastructure with the MSS-APOE4.
Product Description
Product Description
Introducing the single-port Power over Ethernet (PoE) adapter card by Shanghai Mss International Trade Co., Ltd. This high-quality adapter card is designed to meet the reading habits of English-speaking natives, providing a reliable and efficient power supply solution for your devices.
Key Features:
Single-port PoE output with a power consumption of up to 30W
External large 4Pin power supply replenishment interface
Adaptive power consumption output for external devices: Class 0, Class 1, Class 2, Class 3
Wider RJ45 pitch design for easy connectivity
Specially designed interface for industrial cable access, ensuring a stable and secure connection
Compatible with common cable access
Larger heat sink for effective heat dissipation in poor heat environments
Thickened gold RJ5 connector for secure and reliable connectivity
4 8-pin RJ45 head design to save valuable PCIe slot resources on the motherboard

With the single-port PoE output, this adapter card allows you to power your devices with up to 30W of power, ensuring they operate efficiently. The external large 4Pin power supply replenishment interface provides convenience and flexibility in power management.
The adaptive power consumption output supports Class 0, Class 1, Class 2, and Class 3 devices, allowing you to connect a wide range of external devices without compatibility issues.
The wider RJ45 pitch design makes it easy to connect cables, while the specially designed interface for industrial cable access ensures a stable and secure connection. Say goodbye to unstable connections between network ports and cables in industrial environments.
Compatible with common cable access, this adapter card offers versatility and convenience in various setups.
The larger heat sink effectively dissipates heat, ensuring the stable operation of the adapter card even in poor heat dissipation environments. You can rely on this adapter card for long-term usage without worrying about overheating.
The carefully selected thickened gold RJ5 connector guarantees a secure and reliable connectivity, minimizing the risk of disconnections or interruptions.
With its 4 8-pin RJ45 head design, this adapter card saves valuable PCIe slot resources on the motherboard, allowing you to utilize them for other purposes.
Choose the single-port PoE adapter card by Shanghai Mss International Trade Co., Ltd. for a reliable and efficient power supply solution for your devices. Order now and experience the benefits!

Features
Controller	Intel I350
Cable medium	Copper cable
Cable Types	Cat 5E and Cat6:1000Base-T up to 100m (POE power supply requirements Cat5) Cat 5E and Cat6:100Base-T up to 100m (POE power supply requirements Cat5)
Bracket	Full-height Bracket
Thermal design power consumption (max)	5W
Single-port PoE output power consumption(max)	30W
Connector	4*1G RJ45
PCIe Bus Type	PCIe v2.1 x4 , compatible with x8 , x16
Rate	10/100/1000Mbps
Operating system support	Windows XP/Vista/7/8/8.1/10/11 Windows Server 2003 R2/2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 Linux Stable Kernel version 2.6.x/3.x/4.x or later; Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later FreeBSD 9 / 10 / 11 or later VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later

Technical Features
IEEE Standard	IEEE802.3af -2003 PoE standard IEEE802.3at -2009 PoE standard IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3z IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE)
PCI-SIG* SR-IOV	Yes
Jumbo frame packet	Yes
VMDq	Yes
WOL	Yes
PXE	Yes
DPDK	Yes
FCoE	No

Environment Features
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-40 to 85 (-40 to 185 )
Storage Humidity	90% non condensing under 35°C

LED Indicators
LED	1000Mbps, Orange bright + Green flashing
	10/100Mbps, Green flashing

Physical Features
PCB Size (mm)	149*104.3*1.6
weight (g)	251g

Order Information
M/N	Description
LRES2004PT-PoE	PCIe x4 1G Quad Port Copper Ethernet PoE Server Adapter
PS: The above details is just for reference,if there is any change,no inform will have.
