Two Extruder PP Woven Bags Granulator Plastic Recycling Machine

Product Description

Product Description

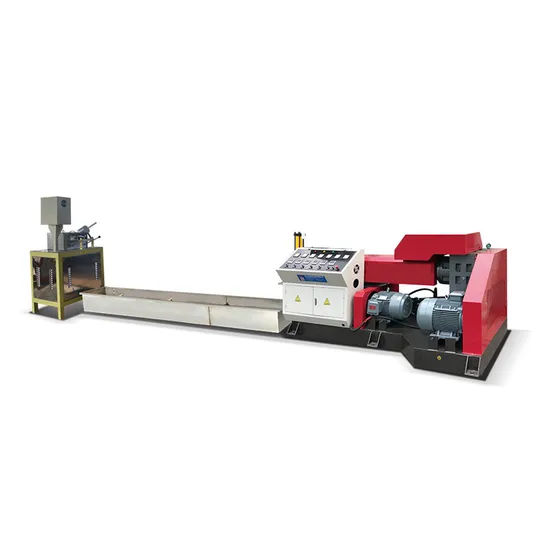

Double Screw Plastic Recycling Machine
Introducing our Double screw flastic film recycling machine, the perfect solution for all your plastic recycling needs!
Our state-of-the-art machine is designed to regenerate and granulate waste plastics like HDPE, LDPE, and PP, providing you with a sustainable and eco-friendly way to dispose of plastic waste.
With its fast screen changer unit and automatic temperature control, our recycling machine ensures efficient operation and consistent performance. The granulating crusher, equipped with an adjustable speed motor, works in sync with the extruding machine, resulting in high-quality recycled plastic particles.
But that's not all! Our machine is also equipped with a hydraulic filter-screen-replacing unit and automatic temperature control, ensuring your convenience and safety during operation.
Thanks to its modular design principle and component standardization manufacturing, our system provides effective and stable compounding performance. It consists of two screws, one long and one short, and features forced feeding to ensure smooth material entry into the hopper.The design of two screws can completely plasticize the recycled materials and avoid impurity residues.
Here's how it works: simply put the plastic fragments into the feeding cylinder, where they are heated and plasticized by the screw. The extrusion process transforms them into noodle-shaped plastic strips, which are then cooled by the stainless steel water tank. Finally, the noodles are cut into recycled plastic particles.
If you have other materials that need recycling, don't worry!
Just send us a message, and we'll provide you with a suitable machine.
Our machine is the reliable and efficient solution you've been looking for!
Product Parameters

Model	XY90-90	XY120-110	XY150-130
Sub material	HDPE,LDPE,LLDPE,PP
Screw diameter	90mm+90mm	120mm+110mm	150mm+130mm
Screw length	2970mm+900mm	3960mm+1100mm	4950mm+1300mm
Max. output	60-80kg/h	80-100kg	150-200kg
power supply	380v,3p,50hz(Power supply is different, the price will change)
Machine weight	1500kg	2800kg	3600kg
Cutting machine power	2.2Kw	3.3Kw	4Kw

Detailed Photos

Certifications

Packaging & Shipping


Company Profile



FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.Welcome to visit our factory~3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days.4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.8. What is your company after sale service?We would express the free replacement parts as soon as possible.
