Qr Code Barcode Reader Red 2D Wireless USB Bt Handheld Barcode Scanner

Qr Code Barcode Reader Red 2D Wireless USB Bt Handheld Barcode Scanner

US$36.60
1-199 Pieces
US$31.00
200-499 Pieces
US$25.00
500+ Pieces

Basic Info.

Model NO.
OCBS-W235
Kind
Manual, Auto-Sensing,Continuous Scanning
Scan Speed
400 Scans/Sec
Scanning Light Source
LED
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
USB
Scanning Element
CMOS
Optical Resolution
N/a
Application
Commercial Application
Transport Package
Carton
Specification
60*44*46mm/50pcs
Trademark
OCOM/OEM/NEUTRAL
Origin
Shen Zhen, China
Production Capacity
50000 PCS/Year

Product Description

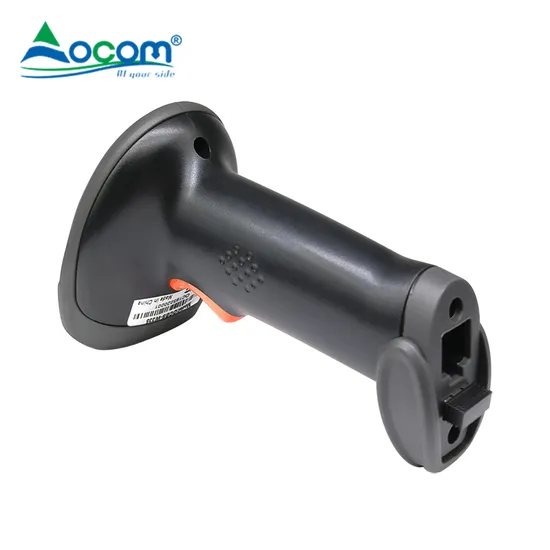

2D Qr Code USB Wireless Handheld Reader Barcode Scanner (M/N:OCBS-W235) Features: Standard 2.4G+USB Communication 1 million pixel high precision scanning engine Low power design can scan 15000 times Scanning high density barcode has high performance Superior performance for Small two-dimensional codes Big wireless buffer can transfer 600 characters Suitable for Russian tobacco projects
General
Model OCBS-W235
CPU 32 bit
Wireless function 2.4G+USB or 2.4G+Bluetooth+USB for optional
Battery 1500mAh (20000 times scan and transmission)
Working Voltage 5VDC ±10%
Current working 250mA±5%
Performance
Light Resource CMOS
Decode error rate Less than 1/8 million
Image resolution 1MP(1280*800)
Precision 1D≥ 4 mil (0.10mm),2D≥ 7 mil (0.10mm)
Print Contrast Signal ≥ 30°
scan angle Yaw(Skew)55° & Pitch55°
Decoding ability 1D : UPC-A, UPC-E, EAN-8, EAN-13, Code128, Code39, Code 93, Code32, Code11, Codabar, Plessey, MSI, Interleaved 2 of 5, IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, RSS-14, RSS-14 Expanded, RSS-14 Limited, Composite Code-A, Composite Code-B, Composite Code-C.
2D: PDF417,Micro PDF 417, QR Code (QR1/2, Micro),Data Matrix, Aztec, Chinese Sensible Code
Depth of scan field Code 39-5mil:60mm-120mm
UPCA-13mil(100%):35mm-310mm
Physical
Weight Gross:300g
Package 190*115*80mm
50 in 1 carton 580*410*430mm/15.0kg
Environment
Working temperature& humidity 0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature& humidity -20 to 60 degrees centigrade , 10%~90% No condensation
