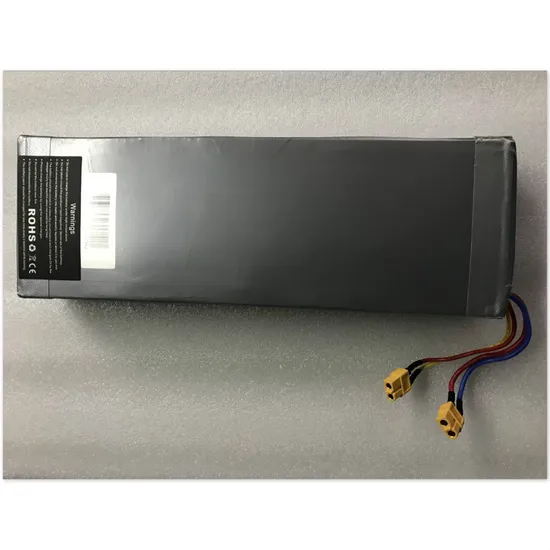

18650 Cell Lithium 36V 9ah Li-ion Battery Pack for E-Bike

Product Description

36V 9Ah power lithium battery lifepo4 for e-bike
Battery group specifications

Cell	model		GLP10Ah-7768256
	Capacity(0.5C)		≥9Ah
	rated voltage(V)		3.2V
	Typical Impedance (mΩ)		≤5mΩ
	Battery material		NMC cathode material
PACK	Combination method		1P12S
	Minimal capacity(0.5C)		9Ah
	Nominal voltage		36V
	Max. charge voltage		43.8V
	Discharge cut-off voltage		≤30V
	Max Charge current		5A(0.5C)
	Max Working current		15A(1.5C)
	Standard charge current		0.3C
	Standard charge current		0.5C
	Pack Impedance standard		≤100mΩ
	Weight (Approx.)		4Kg
	Max. dimension(L×W×H)(mm)		76*107*380
	Operating temperature	Charge temperature	0ºC~45ºC
		Discharge temperature	-20ºC~60ºC
BMS	Single cell over-charge cut-off voltage		3.7V
	over-charge release voltage		3.6V
	Single cell under-discharge cut-off voltage		2.5V
	Discharge release voltage		2.7V
	Over-discharge cut-off current		40A
	Over-discharge cut-off current delay		1.5S
	Short-circuit protection		45A
	Short-circuit protection delay		500uS
	Condition for the recovery of over-current and Short-circuit
	Balance current		40-50mA
	Balance Condition		3.6

Caution:
1.Do not dismantle, open or shred the batteries.
2.Do not expose batteries to heat or fire. Avoid storage in direct sun light.
3 .Do not short-circuit the battery,Do not store batteries haphazardly in a box or drawer where they may be short-circuited by other metal objects.
4 Forbid confusedly using the charge socket and discharge socket, or accidents may occurred.
5.Do not subject batteries to mechanical shock.
6.In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
7.Observe the plus (+) and minus (-) marks on the battery and equipment and ensure correct use.
8.Keep batteries out of the reach of children.
9.Keep batteries clean and dry.
10.Wipe the battery terminal s with a clean dry cloth if they become dirty.
11 .Batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions.
12.Do not leave a battery on prolonged charge when not in use.
13 .After extended periods of storage, it is necessary to charge and discharge the batteries several times to obtain maximum performance.
14 .The batteries give their best performance when they are operated at normal room temperature (20 °C ± 5 °C).
15.Retain the original product literature for future reference.
16.Use only the battery in the application for which it was intended.
17 When possible, remove the battery from the equipment when not in use.
18. Dispose of properly.
19. Cells used as E-motor or storage power should be matched with controller or related equipment..Because the battery piles are matched with protection board,you can not drive the pure inductance equipment otherwise you could damage the whole system.
