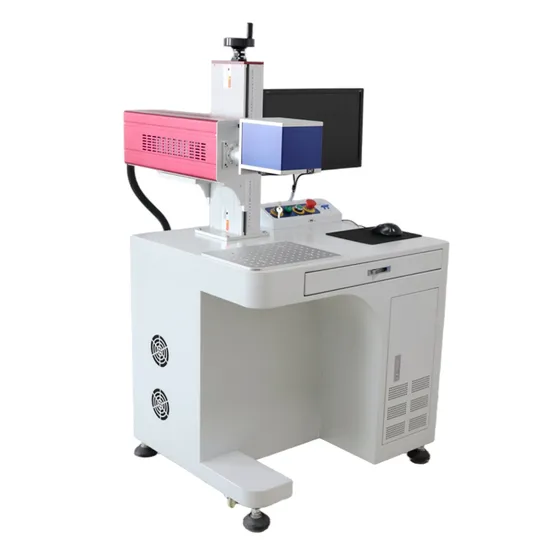

CO2 Laser Marking Machine Galvo CO2 Laser Engraving Machine for Wood Acrylic Leather 30W 60W CO2 Laser Engraver

Product Description

CO2 Laser Marking Machine Galvo CO2 Laser Engraving Machine for Wood Acrylic leather 30W 60W CO2 Laser Engraver
Product Description
Instructions:
The CO2 series laser marking machine is a gas laser device with a wavelength of 10.6μm, falling in the mid-infrared range. It operates with CO2 gas as the active medium. When a high voltage is applied to electrodes within the discharge tube filled with CO2 and auxiliary gases, a glow discharge is generated, causing the gas molecules to emit laser light. This energy is amplified to form a laser beam. Using a computer-controlled galvo system, the laser beam path is adjusted to enable precise and automated marking. Known for its high power and efficient electro-optical conversion, the CO2 laser marking machine is ideal for a wide range of marking applications.
Parameters:

Machine model	OM-C30		OM-C40
Wave length of laser	10.64um
Laser power	35W		45W
Marking scope	175*175/200*200mm/300*300
Laser sources	DAVI/Yongli optional
Laser Head	Scanning head
Minimal character	0.01mm
Marking speed	7000mm/s
Cooling ways	Air Cooling
Power supply	110V/220V/, 50/60Hz
Process Material	All kinds of metal Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard export wood case

Detailed Photos
Key Features:
1. High-speed marking with excellent accuracy.
2. Capable of marking materials such as wood, acrylic, glass, leather, plastics, paper, and rubber.
3. Non-contact process ensures no wear on the material.
4. User-friendly operation with customizable settings for various applications.
Main Parts: 1. High-Quality Imported RF Metal Laser: Offers a laser life of over 30,000 hours with exceptional beam quality and more than 10% wall-plug efficiency.
2. High-Speed Galvo Scanner: Ensures fast response time (less than 0.7ms) for high-speed marking and precision with stable functionality.
3. F-Theta Lens: Provides stability with wavelength-specific options (Sino or Huayuan), available in field sizes of 175mm, 200mm, and 300mm.
4. Lifting Shaft: Allows precise adjustment of marking height to accommodate various materials and applications.
5. Control System: Powered by EZCAD, offering stable performance and easy operation for complex marking tasks.
6. Software: Equipped with an English version by default, with other language options available upon request.
Optional Components:
1. Rotary: an optional accessory for laser marking machines that enables cylindrical or curved objects to be processed with precision.
2. 2D table: a flat, precise working platform used in laser machines for marking on various flat materials. It provides stability and ensures accurate processing over a defined two-dimensional area.
3. Fume Extractor: efficiently remove smoke, dust, and harmful particles generated during laser cutting, engraving, or marking processes. Materials Suitable for CO2 Laser Marking Machine: Wood Acrylic Leather Paper Plastics (e.g., PVC, ABS) Rubber Ceramic Textiles Bamboo Industries Using CO2 Laser Marking Machine: Packaging: Marking barcodes, logos, and expiration dates on paper and plastic packaging. Textiles: Engraving patterns and designs on fabric and leather. Electronics: Labeling plastic casings, buttons, and components. Crafts: Engraving personalized designs on wood, glass, and ceramics. Advertising: Creating signage and decorative acrylic panels. Stationery: Marking logos or patterns on notebooks, pens, and folders. Automotive: Marking rubber or plastic components with identification codes. The CO2 laser marking machine offers reliable performance and versatility across a wide range of non-metal materials, making it an indispensable tool for multiple industries.
Packaging & Shipping
Package and Delivery:
1. Anti-Collision Protection: Each part of the machine is cushioned with soft, shock-absorbent materials, primarily pearl wool, to protect against impact.
2. Full-Film Wrapping: The machine is completely wrapped in film to prevent moisture and dust exposure.
3. Fumigated Wooden Crate: The crate is treated to ensure safe, compliant shipping.
4. Reinforced Iron Base: A solid iron base is built into the wooden crate for stable support and easy handling during transport.
Packing List:1. Protective Goggles - Essential for eye protection during operation.
2. Power Cable - Supplies power to the machine.
3. Foot Switch - Enables hands-free operation control.
4. Flash Drive - Includes software and English user manual.
5. Positioning Bars - Helps accurately position materials.
6. Tool Set - Basic tools for maintenance and adjustments.
7. Laser Test Paper - For testing laser precision and output.
8. Ruler - Assists with material alignment and measurement.
9. Spare Buttons - Replacement buttons for quick repairs. After Sales Service
Warranty and After-Sales Service:
1. Warranty Period: 2 years for the entire machine and 2 years for the fiber laser source.
2. Lifelong Technical Support: Available online or via email.
3. 24/7 Online Assistance: Our team is ready to help you effectively use our machine at any time.
4. Overseas Support: We offer training, installation, and operational assistance if needed.
5. Free Training at Our Facility: You are welcome to visit us for hands-on training.
6. Certification: Our machines are produced in compliance with CE and FDA standards.
Customer Feedback:
Certifications
Certifications:
FAQ:
1. How can I choose the most suitable machine?
Please let us know the type of work you plan to do, the primary materials you'll use, and whether you'll be engraving or cutting. If cutting, what is the maximum cutting thickness required? Additionally, let us know the preferred working area size.
2. If parts have issues during the warranty period, will your company repair or replace them?
Yes, we will. Simply send the faulty part back to us, and we'll repair and return it to you free of charge within the warranty period. If it cannot be repaired, we'll send you a new part. (Note: Does not cover consumables or damages caused by misuse.)
3. Is technical support available after we receive the machine?
Absolutely. Our technicians are available 24/7 to assist with installation and provide free training once you receive the machine
4. Can you deliver the machine to my door?
For large, heavy machines, we usually quote a CIF price and ship to your nearest port. However, door-to-door delivery is available under DDU terms, which includes shipping, customs clearance, and delivery to your location.
For smaller machines, we can provide a quote for door-to-door express shipping (via DHL, TNT, FedEx), with delivery in approximately 5-7 days. 5. Can I purchase spare parts from your company in the future?
Yes, we recommend purchasing some spare parts along with the machine to save on shipping costs.
6. How long is the delivery time?
Standard machines are typically shipped within 3-7 days, while customized machines may require 10-15 days.
