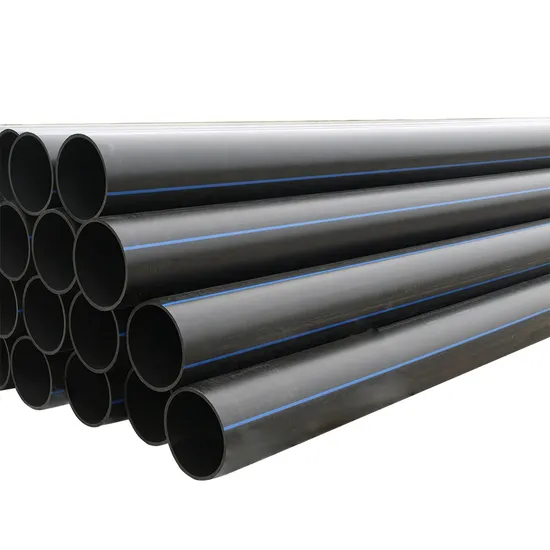

HDPE PE100 High Density Polyethylene Water Pipe of SDR26/SDR21/SDR17/SDR13.6/SDR11 Size De20-1200mm Diameter PE Tube HDPE Fitting Pipe

Product Description

COMPANY PROFILE
Huasheng Pipeline Technology Co.ltd is founded in 1988 ,which specialized in moulding,Precision injection,UPVC,CPVC pipe, fittings and Vales in DIN,ISO,ASTM standard on water supply and industry with CE,ISO,SGS etc certificate.
Currently, Our annual production have reached a sales turnover of USD 30,000,000, covering 250,000 square meters two factory , over 170 injection machines, 20 pipe extruding lines,80 mechanical processing equipment and more than 500 laborers.
Application for PE Pipes:
Water mains, gas mains, sewer mains, slurry transfer lines, rural irrigation, fire system supply lines, electrical and communications conduit, and stormwater and drainage pipes.
Advantages for PE Pipes:
√ Durable for more than 50 years
√ Flexible-well suitable to be installed in dynamic soils,even in earthquake-prone areas
√ High flow capacity because of its smooth bore and end-to-end jointing methods
√ Anti-corrosion PE material is good at chemical resisitance,such as acid,sewerage,gas,etc
√ Easy to install-light weight and cheaper installation methods
√ Maintainance-have long-term maintenance with cost savings
√ Eviroment friendly
Dimensions:

PE pipe for water supply
De(mm)	Standard GB/T 13663-2000 Unit:mm
	Wall thickness	Tolerance	Wall thickness	Tolerance	Wall thickness	Tolerance	Wall thickness	Tolerance	Wall thickness	Tolerance
	SDR26		SDR21		SDR17		SDR13.6		SDR11
	PN6		PN8		PN10		PN12.5		PN16
20									2.30	0-+0.5
25							2.00	0-+0.5	2.30	0-+0.5
32							2.40	0-+0.5	3.00	0-+0.5
40							3.00	0-+0.5	3.70	0-+0.6
50							3.70	0-+0.6	4.60	0-+0.7
63							4.70	0-+0.8	5.80	0-+0.9
75					4.50	0-+0.7	5.60	0-+0.9	6.80	0-+1.1
90			4.30	0-+0.7	5.40	0-+0.9	6.70	0-+1.1	8.20	0-+1.3
110	4.2	0-+0.7	5.30	0-+0.8	6.60	0-+1.1	8.10	0-+1.3	10.00	0-+1.5
125	4.8	0-+0.8	6.00	0-+1.0	7.40	0-+1.2	9.20	0-+1.4	11.40	0-+1.6
140	5.4	0-+0.9	6.70	0-+1.1	8.30	0-+1.3	10.30	0-+1.6	12.70	0-+1.8
160	6.2	0-+1.0	7.70	0-+1.2	9.50	0-+1.5	11.80	0-+1.8	14.60	0-+2.2
180	6.9	0-+1.1	8.60	0-+1.4	10.70	0-+1.5	13.30	0-+2.0	16.40	0-+3.2
200	7.7	0-+1.2	9.60	0-+1.5	11.90	0-+1.8	14.70	0-+2.3	18.20	0-+3.6
225	8.6	0-+1.3	10.80	0-+1.7	13.40	0-+2.1	16.60	0-+3.3	20.50	0-+4.0
250	9.6	0-+1.5	11.90	0-+1.9	14.80	0-+2.3	18.40	0-+3.6	22.70	0-+4.5
280	10.7	0-+1.7	13.40	0-+2.1	16.60	0-+3.3	20.60	0-+4.1	25.40	0-+5.0
315	12.1	0-+1.9	15.00	0-+2.3	18.70	0-+3.7	23.20	0-+4.6	28.60	0-+5.7
355	13.6	0-+2.1	16.90	0-+3.3	21.10	0-+4.2	26.10	0-+5.2	32.20	0-+6.4
400	15.3	0-+2.3	19.10	0-+3.8	23.70	0-+4.7	29.40	0-+5.8	36.30	0-+7.2
450	17.2	0-+3.4	21.50	0-+4.2	26.70	0-+5.3	33.10	0-+6.6	40.90	0-+8.1
500	19.1	0-+3.8	23.90	0-+4.7	29.70	0-+5.9	36.80	0-+7.3	45.40	0-+9.0
560	21.4	0-+4.2	26.70	0-+5.3	33.20	0-+6.6	41.20	0-+8.2	50.80	0-+10.1
630	24.1	0-+4.8	30.00	0-+5.9	37.40	0-+7.4	46.30	0-+9.2	57.20	0-+11.4
710	27.2	0-+5.4	33.90	0-+6.7	42.10	0-+8.4	52.20	0-+10.4
800	30.6	0-+6.1	38.10	0-+7.6	47.40	0-+9.4	58.80	0-+11.7
900	34.4	0-+6.8	42.90	0-+8.5	53.30	0-+10.6
1000	38.2	0-+7.6	47.70	0-+9.5	59.30	0-+11.8
1200	45.9	0-+9.1	57.20	0-+11.4	67.90

Why choose us?
√ We have variety of plastic products with pressure for pipes,fittings and valves for water supply,industry and water treatment application.
√ We have professional engineering team and moulding department for your customized requirement.
√ We have a QC team with more than 20 staff for insepction in 2 working shifts to guarantee excellent quality.
√
We have all products with plus tolerance for wall thickness.
FAQ
1.What's the MOQ?
Normally we have sufficient stock with our logo or blind logo,so we don't have MOQ.But for customized logo or design,we have different MOQ for different sizes
2.Can we get a sample?
Yes,we can send you a sample if we have stock by shipping cost collected.But for customized sample,moulding expense should be paid in advance.
3.How about the delivery time?
Normally we have stock,so our delivery will be fast.For those customized products,it will take 20-25 days,but it depends on the quantity.
4.Which port is applicable for you?
Shanghai port.
5.What about your price term?
EXW,FOB,CFR,CIF
6.Payment terms
30% prepayment before production,balance be paid before delivery or after inspection.
7.What is the location of your company?
Changzhou city in Jiangsu Province,which is about 2 hours' driving far from Shanghai.
It will take less than 1 hour from Shanghai station to Changzhou by bullet train.
8.What standards are your products complied with?
GB/T,DIN,ASTM,JIS Standard
