Poe Switch Supports Automatic Port Rollover Auto Mdi/Mdix 10/100/1000m Self-Adaptive

Product Description

POE Switch supports automatic port rollover Auto MDI/MDIX 10/100/1000M self-adaptive
This is an 2.5G POE switch. There are 1*10G SFP+ fiber port, 1*2500Mbps RJ45 uplink ports and 4*2500Mbps PoE ports. The PoE ports comply with the IEEE 802.3af/at 48V PoE standard, up to 30W for each PoE port. The maximum PoE output power consumption of the whole machine is 65W. It support active PoE standard, automatically detect and identify the PD's power standards, then provide the PoE power by a simple network cables. Plug and play, meeting high-speed network + PoE power supply network environment, suitable for IP monitoring and wireless AP equipment, widely used in hotels, shopping malls, campuses, factories, dormitories, hospitals and other small and medium-sized enterprises to establish high speed networks.
Product Features: 16*10/100/1000Mbps RJ45 ports support PoE+, meeting the PoE power supply needs of security, teleconferencing systems, wireless network coverage and other scenarios; Comply with IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 300W, the maximum PoE output power of PoE port is 30W; Automatically identify PoE devices for power supply without damaging non-PoE devices; POE priority is supported, from port 1 to port 16, which is enabled by default; l
Stable and reliable
With the latest high-speed Ethernet chip, self-identifying and intelligent management, ultra-high backplane bandwidth design with extremely fast data processing capabilities, improved the data transmission performance; Seiko metal housing with electrostatic paint, double-flow heat dissipation, strong and durable Support port lightning surge: common mode 4KV(level B); Electrostatic ESD: air 8KV, contact 6KV(level B)
Simple to Operate Zero configuration feature, automatically supplied to adaptive equipment; The PoE power is no restricted by power lines and power socket, saving the labor and wiring costs. Users can easily understand the working status of device through the power indicator light and network port status light.
One-Key 250 Meters PoE power Off: all ports communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000M self-adaptive. ON: Link extension mode, 9-16 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled;
Hardware Spec:

Standard	IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE 802.3z (Gigabit Ethernet Fiber Standard), IEEE 802.3af, IEEE 802.3at

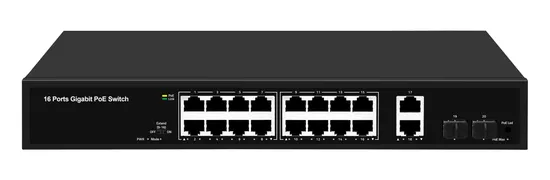

Interface	16*10/100/1000Mbps RJ45 PoE ports
	2*10/100/1000Mbps RJ45 uplink ports
	2*Gigabit SFP ports
	1* DIP switch (On/Off mode)
	1 *AC input, 100~240V 50/60Hz
PoE Standard	IEEE802.3af(15.4W) IEEE802.3at(30W) POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6-
PoE Input	52V /3.84A (200W) / 52V /5.76A (300W)
Power	Non POE board power: maximum 10W POE power: maximum 180W/maximum 280W
Network Media	10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
Optical Medium	Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Bandwidth	40Gbps
Packet Forwarding Rate	29.76Mpps
Memory cache	3Mbit
MAC address table	8K
Storage and forwarding	Support
Working Environment	Working Temperature: -10ºC ~ 50ºC Storage Temperature: -40ºC ~ 70ºC Working Humidity: 10% ~ 90% RH No-condensing Storage Humidity: 5% ~ 95% RH No-condensing
Size	320*207*44mm
Packing information	Package Dimensions: 370*290*85mm Product N.W: 1.78KG(200W)/1.87KG(300W) Product G.W: 2.28KG(200W)/2.43KG(300W) Carton Dimensions: 445*310*390mm Packing Quantity: 5 PCS Packing Weight: 12.4KG(200W)/13.15KG(300W)
Packing list	Switch, 1 PCS Power cord, 1PCS User manual, 1 PCS
LED Indicator Status
LED Indicator	PWR(Power), 1-20 Green Light(Link&Data), 1-16(Yellow Light), POE Led Key
PWR	On: Powered on Off: Powered off
1-20 Green Light (Link&Data)	On: Link normal Off: Link blocked Flashing: Data transmitting

1-16 (Yellow Light)	On:POE power supply is normal Off:POE not powered
PoE Max POE power light (Green Light)	Off: indicates PoE power usage is less than 90% Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% On: indicates that PoE power is used at 95%<P<100%
Mode DIP Switch light	On:Extend on Off:Extend off
PoE Led Key	Dual color light selection: default green (link data), switch yellow light (PoE)
Extend DIP Switch	OFF:common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled ON: Link extension mode, 9-16 ports force 10M, link 250M (enable POE watchdog),Port AI mode is enabled;
