New Hot Sale Plain and Terry Socks Knitting Machine 3.75 Inch

Product Description

Product Description
Main technical parameters for plain and terry socks knitting machine

Model	ZJJW-NPT
Cylinder diameter	3.5''	3.75''
Plain needle number	72-220N	72-240N
Terry needle number	72-168N	72-168N
Max. Speed	280rpm/min	230rpm/min
Elastic shuttle	Can choose one or two	Can choose one or two
Color for socks	6 colors in one line and total 13 colors in one sock	5 colors in one line and total 10 colors in one sock
Voltage	220V/380V/415V	220V/380V/415V
Floor space	1.5*0.95*2.2 meters	1.5*0.95*2.2 meters
Packaging	Packed in bakelite plate case 165*95*85cm	Packed in bakelite plate case 165*95*85cm
Throughput (pairs/24hours)	Men sock: 260 women sock:280 Children sock: 340 stocking: 130	Men sock: 260 women sock:280 Children sock: 340 stocking: 130
Optional parts	Individual suction blower 0.75KW/1.1KW/1.3KW	Individual suction blower 0.75KW/1.1KW/1.3KW
	Infrared tension sensor	Infrared tension sensor
	Normal creel/Large creel(Ronati creel)	Normal creel/Large creel(Ronati creel)
	Sock off sensor	Sock off sensor

Main features for plain and terry socks knitting machine:
1. Needle counts from 72N 84N 96N 108N 120N 132N 144N 156N 168N are available.
2. 3D socks, two-color heel socks, low-cut socks, five-toe socks, non-terry socks can be knitted, invisbile sock function is optional.
3. Length, density can be set up on the machine controller, patterns can be designed through the software according to buyers' requirement. Therefore, sports socks, jacquard socks, casual socks, high knee socks can be knitted
4. Double down pickers are adopted for a better and quicker heel-knitting
5. Controller: Mingde controller is adopted, which is compatible with glory system, Glory, Hengqiang(Jiagu Software) are also optional
6. Servo Motor: Royaltec or Y.M.C, both of them are stable in performance and less repair rate
7. Pneumatic Cylinder: LIDING, best brand in China
8. Selector: Mingde brand as standard configuration, Fushun brand will be optional if buyer requires
9. Needles: Feijian or Golden Roc brand
10. Cams: CR12MOV material are used instead of casting part, which has a longer life
11. Standard air valve configuration
12. Package: wooden case, usually 18 sets can be loaded in a 20ft container and 39 sets in a 40ft container.

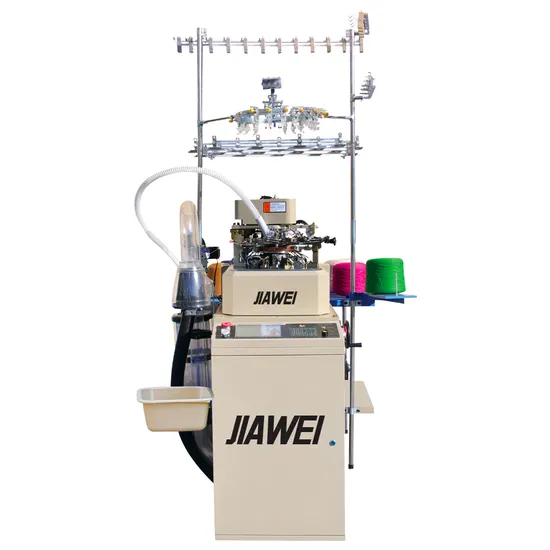

Detailed Photos


Detail machine pictures or photos are for 100% real. For more photos, videos and details, please contact me without any hesitation!
Related machines
Besides of socks knitting machine, the following machines may be also needed for making socks.
Company Profile
Zhuji Jiawei Trading Co., Ltd. is located in Zhuji City, which is very famous for socks in the world. Our company mainly provide socks machine and socks yarn. It is just 200 kilometers far from Ningbo sea port and 250 kilometers far from Shanghai sea port. The followings can be provided by us:
1. Products with good quality and competative price;
2. Whatever you want, we can do best to produce or find for you;
3. Quick feedback: 24 hours online service. Your inquiries or questions can be replied swiftly.
4. Rich experience: Over 10 years of experience in socks machine and socks yarn industry.
Our services
Quick feedback: 24 hours online service. Your inquiries or questions can be replied swiftly. Rich experience: Over 10 years of experience in socks machine industry. Large capicity: Cooperated with several factories to make over 100 sets used socks machine per month. Competitive price: We have own factory, so we can offer the best price. Quality warranty: 6 months for used socks machine after shipment. Packaging & Shipping
We use bakelite plate case to pack sock knitting machine. It will be suitable for export and transportation.
