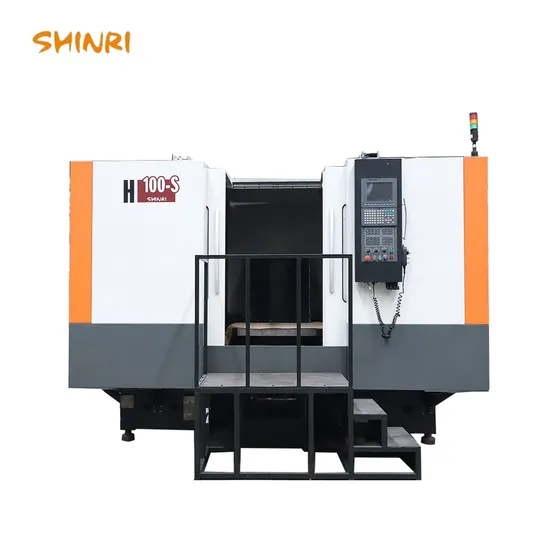

H100-S Two-Sided Horizontal Machining Center Specialized in Processing Heat Sinks 3-Axis Equipped with 1000× 1000mm Mesa

Product Description

Product Description
1.H100-S Two-sided horizontal machining center is specialized in processing heat sink machine tool for customer, is composed of two horizontal machining center head boring,equipped with 1000X1000mm mesa, 4x90° degrees CNC turntable, in order to achieve the parts' four face milling, drilling, tapping and other processes.
2.The bed structure of the whole machine tool was analyzed by FEM finite element method, the optimum stiffness and stability can be guaranteed. The casting is made of high strength cast iron and resin sand process modelling. The rigidity and strength of the bed can be improved by reasonable arrangement of ribbing board, and the stress can be eliminated by artificial aging treatment, so as to ensure good precision maintenance.
3.The guide rail pair of each axis adopts rolling linear guide rail, small change in kinetic and static friction, high sensitivity of moving parts, low vibration at high speed,no creep at low speed, high positioning accuracy,excellent servo drive performance; at the same time,the carrying capacity is large, the cutting anti-vibration performance is good, it will be improve the characteristics of machine tools, the precision and precision stability of machine tools and the service life of machine tools.
4.AC servo motor is used to drive ball screw directly in all three axes, it can reduce the transmission chain and improve the reliability and precision.
a)High precision bearing is adopted,and the ball screw is pre-stretched to improve the stiffess and transmission accuracy of the screw pair.
b) Using high precision ball nut screw pair can prolong the service life of the machine tool.
c) The three-axis drive adopts AC servo motor and drives the ball screw directly through the coupling, which can ensure the rapid response and smooth cutting of the machine during machining.
Product Parameters

Item	Specification	Unit	H100-S
Travel	X/Y/Z axis travel	mm	1000/600/550
	Distance between worktable center to spindle nose	mm	100-1000
	Distance between worktable to spindle center line	mm	125-725
	Mini. distance between two spindle faces	mm	300
Pallet and Worktable	Pallet size	mm	1000×1000
	Max. pallet load	kg	1000
	No. of pallets	pcs	1
	Distance between worktable surface to ground floor	mm	1000
Spindle	Standard Spindle speed	r/min	50-30000
	Spindle motor	kW	8.5
	Spindle taper		HSK-E40
Feeding speed	Rapid feed rate(X/Y/Z)	m/min	30/30/30
	Feed rate	m/min	25
Tool magazine	Magazine capacity	tools	16X2
	Max. weight of tool	kg	3
	Tool change time (Tool-To-Tool)		5.5
	Max. tool diameter (Adjacent full)	mm	Φ50
	Max. tool diameter (Adjacent empty)	mm	Φ90
	Max. length of tool	mm	110
	Shank type		HSK-E40
Accuracy	Positioning accuracy	mm	X/Y/Z axis: 0.010
	Repeatability	mm	X/Y/Z axis: 0.006
	B axis positioning accuracy	″	12 (tooth disk)
	B axis repeatability	″	8 (tooth disk)
Control system FANUC Oi-MF
Power supply	Air source	Mpa	0.5~0.8
	Power (3 phase AC380V, 50/60HZ)	KVA	60
Machine weight		T	9
