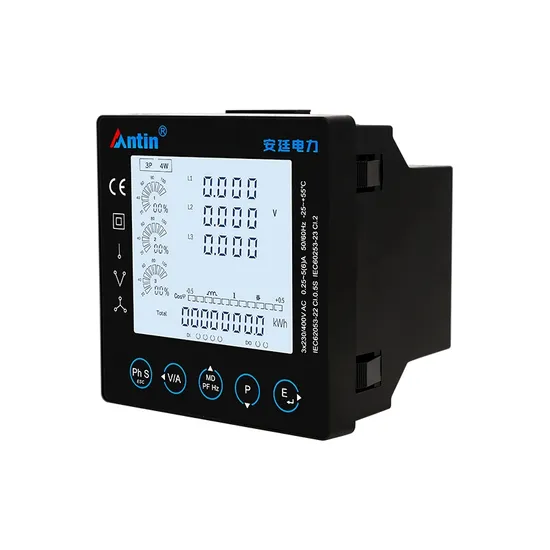

Multifunction Power Analysis Meter Digital AC/DC85V~265V Smart Meter

Multifunction Power Analysis Meter Digital AC/DC85V~265V Smart Meter

US$30.00-50.00 100 Pieces (MOQ)

Basic Info.

Model NO.
ATZ2000
Power
≤20W
Voltage
AC/DC85V~265V
Communication
RS485
Operation Temperature
-25ºC~65ºC
Operation Humidity
≤95%Rh
Measuring Range
0%Rh~99%Rh
Measurement Accuracy
±5%Rh
Working Threshold
60%Rh(Default, Adjustable)
Display
2-Digit Digital Tube Display
Housing Material
Metal Aluminum
Transport Package
Paper Carton + Pallets
Trademark
Antin
Origin
Hangzhou
HS Code
903033900
Production Capacity
50000 Per Month

Product Description

Product Description
Product Parameters
Parameter Value
Applicable grid Three-phase four-wire, three-phase three-wire, single two-wire, three-phase three-wire PT
Working power Voltage range AC/DC85~265V
Power consumption

≤5W
Input Voltage Rated AC100V,220V,400V
Overload 1.2 times continuous, 2 times (10s)
Power consumption <0.4VA/Phase
Impedance ≥200kΩ
Current Primary current 1-9999A
Secondary input 1A or 5A
Short-time overcurrent 20 times the maximum current for 0.5 seconds
Power consumption <0.2VA/Phase
Impedance ≥0.1Ω
Frequency 45Hz~65Hz
Switching input Dry contact input, photoelectric isolation
Output Switching output Relay output; can set any alarming power, default remote control
Pulse output 1 channel electrical energy pulse
Accuracy index Voltage/current 0.5%
Frequency 0.2%
Power/power factor 1%
Active power Class0.5S
Reactive power CLass2
Communication Bus type RS485
protocol Modbus RTU
Baud rate 2400/4800/9600/19200/38400bps
Address range 1-247
Bus load 64pcs
Communication distance 1000m
Parity EVEN/ODD/NONE(default)
Data bits 8
Stop bit 1
Ethernet por Modbus
Environment Operation temperature -25ºC~55ºC
Storage temperature -40ºC~70ºC
Operating humidity ≤90%RH, non-condensing, no corrosive air
Storage humidity ≤95%RH, non-condensing, no corrosive air
Altitude ≤2000m
Installation category CATIII
Withstanding voltage capacity AC withstanding voltage 4KV/1min Pulse withstanding voltage 6kV - 1.2µS waveform
IP Class IP51(Indoors)
Insulation class 2
Average trouble-free operation time ≥50000h
EMC electromagnetic compatibility test Electrostatic discharge immunity test GB/T 17626.2-2006:test level 4, test voltage 8kV
RF electromagnetic field immunity test GB/T 17626.3-2006:test level 3, test field strength of 10V / m
Fast transient pulse group test GB/T 17626.4-2008:test level 2, current voltage 1kV, other 500V
Surge (shock) immunity test GB/T 17626.5-2008:test level 4, test voltage 4kV
RF field induction conducted harassment immunity test GB/T 17626.6-2008:test level 3, test field strength of 10V / m
Voltage transients, short interruptions and voltage changes in the immunity test GB/T 17626.11-2008:current and voltage test error qualified
Oscillation wave immunity test GB/T 17626.12-1998:Class B ITE test, qualified
Conformity to Standards GBT22264.1-2008 Mounted digital display electrical measuring instrument Part 1: Definition and general requirements
GBT22264.7-2008 Mounted digital display electrical measuring instrument Part 7: Special requirements for multifunctional instruments
GBT22264.8-2009 Mounted digital display electrical measuring instrument Part 8:Recommended test methods
Dimension and Wiring
