Wet Mix Concrete Spray Tunnel Protection Shotcrete Machine for Slope Engineering

Product Description

Product Description
DTK800 wet shotcrete machine concrete spraying machine is a rotor type concrete spraying machine,it adopt mature rotor which feeding mechanism to Solve the problem of sticking and clogging of wet-mixed finished concrete materials in the rotor silo.Achieving uniform continuous small pellet feeding and uniform thin flow conveying in the pipeline. DTK800 rotor type wet concrete spraying machine has the characteristics of reasonable design structure, stable performance,convenient operation and maintenance, and long service life.It is widely used in the engineering construction of railway and highway tunnels, water conservancy and waterpower, subway tunnels, mine roadways, various underground buildings and emergency rescue.
Performance characteristics:1.High efficiency, high performance (high performance of sprayed concrete, dense and homogeneous), high reliability and low consumption. 2.Simultaneous radial feeding of three material cavities to achieve uniform thin flow transportation in plastic concrete pipes. 3.The metering pump is accurate and adjustable, and the high-quality material flow of the atomized jet and nozzle makes the accelerator and concrete mix evenly. 4.Using anti-stick technology, the piston in the machine is forced to pump and feed the material to solve the problem of material sticking in the material cavity. 5.Unique structure and reliable performance.

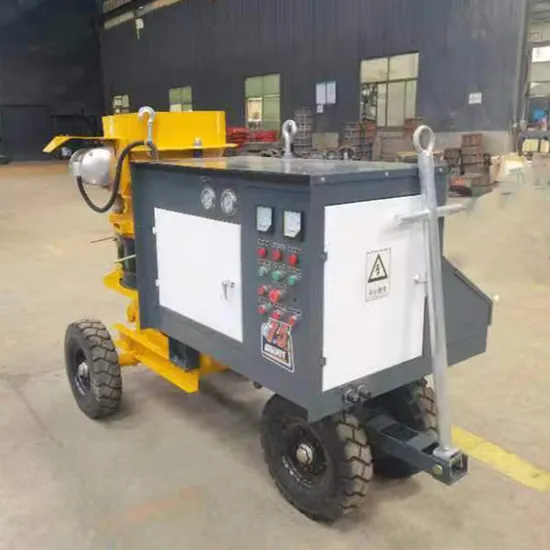

DTK800 Concrete wet shotcrete machine
Production capacity	8m3/h
Aggregate particle size	15mm
Inner diameter of feeding hose	57MM
Appropriate concrete slump	8-15CM
Working air pressure	0.4-0.6MPa
Max.Air consumption	12m3/min
Conveying distance	Horizontal:30m,Vertical:20m
Main motor power	7.5KW
Dimensions (L×W×H)	2050*900*1280mm
Machine quality	1280KG

More shotcrete machine options:
Application


Packaging & Shipping


Company Profile
Zhengzhou Sinogrout Machinery Co., Ltd. is a leading supplier of hydroseeder, shotcrete machine,grout pump, concrete pupmp,slurry pump,mortar pump,etc.construction machinery in China.Our factory is located in Xingyang, Zhengzhou City, Henan Province, it is in the middle of China. With more than 10 years of experience, Sinogrout has grown into a leading grouting equipment supplier in China, as well as an excellent supplier with ISO 9001:2008,SGS and CE certificate in above products in China. Our products have been exported to the Colombia, Greece, Singapore, Malaysia, Philippine,Vietnam, Jordan, India,Pakistan, Qatar, Bahrain...We are committed to develop new products to meet our customers' need, with the ability to provide the necessary technical support and engineering experience required.
