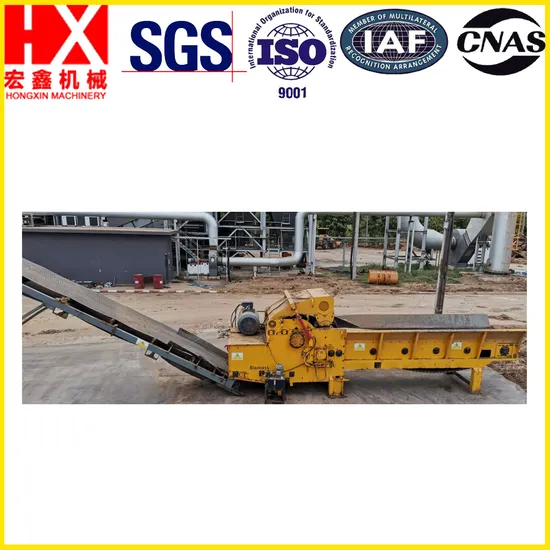

Widely Used in Biomass Pellet Plant Stable Performance Heavy Duty 15-50tph Drum Wood Chipper 160-400kw with Chain Feeding System

Product Description

Product DescriptionHX horizontal grinder is a dedicated equipment for biomass power plant for fuel reserve and MDF plant. Raw materials mainly consist of all kinds of trees, undersized log, timber felling residues (such as branch, twig, etc.), wood pallet, wood building template, and wood processing residues ( such as slab, batten, log core, building templates, etc.) and non-wood raw materials (such as waste of flax, reed, bamboo ,maize straw, cotton stalk, etc.).Product StructureThe wood chipper is mainly composed of chassis, dead knife base, dead knife, chipping rod, rotor, main shaft, hammer, upper feeding mechanism, below feeding mechanism, feeding device, discharge device, hydraulic system and electric control system.
Detailed PhotosThe feeding chain conveyor is made of high manganese steel with the thickness 10mm, which is a typical anti-wear steel, cast organization is austenite and carbide. Via the water toughening treatment, the surface would be rapidly hardening and that make its internal remains the good toughness and deformability under the condition of strong impact and extrusion and the hardening layer with good wear resistance. These characteristics determine that the service life can be up to 22000 hours, which is better than the traditional belt's 2000 hours. In addition, the traditional belt' s with small friction coefficient which will cause the feed speed to be slow and not smooth, but the chain type solved all the above questions.dead knife assembly is made of cast steel and machined as a whole part by the machining center, more accurate and more durable.
Unique dead knife design.
Thanks to the decades of experience, we create a special shock absorbing buffering dead knife design and already got the patent.
This design protects the rotor, decreased the maintenance cost and extends the life span of the machine.
All rotor will go through strict Dynamic balance test to guarantee running stability after finish manufacturing and assembling.
High strength steel, stereoscopic welded, more durableThe main motor starts by a soft start switch, and the circuit has an overload protection device, which automatically cuts off the circuit when overloaded.
Feed roller and chain conveyor can be adjusted automatically by the frequency conversion that makes the operation is safe and simple. According to the specification and quantity of raw materials, the feeding speed can be adjusted automatically to save energy and promote efficiency. It can adjust feed speed automatically according to the load of main motor to avoid idle running of machine.
Product Parameters

Model	HX1400-800	HX1600-600	HX1600-800	HX2000-1000
Rotor diameter (mm)	1100	800	1100	1400
Cutter quantity (piece)	8 or 28	8 or 30	8 or 36	6 or 42
Input size (mm)	1400-800	1600-600	1600-800	2000-1000
Rotor rotation speed (rpm)	900	760	900	432
Max material diameter (mm)	400	300	400	500
Production capacity (tph)	25-30	25-30	35-40	50-70
Main motor power (kw)	250	250	315	400
Chain feed conveyor length (m)	6	6	6	8
Discharge conveyor length(m)	10	10	10	10
Weight (t)	26	23	27	52
Dimension (m)	10x2.62x3.4m	10.5x2.64x3	11.03x2.85x3.4	13.8x3.28x3.9

Model	HX1260-500	HX1400-500
Rotor diameter (mm)	800	800
Cutter quantity (piece)	8 or 24	8 or 28
Input size (mm)	1250-500	1400-500
Rotor rotation speed (rpm)	650	760
Max material diameter (mm)	300	300
Production capacity (tph)	12-15	15-20
Main motor power (kw)	160	200
Chain feed conveyor length (m)	5	5
Discharge conveyor length(m)	10	10
Weight (t)	14	16
Dimension (m)	8.1 x 2.2 x 2.6	8.5 x 2.5 x 2.7
