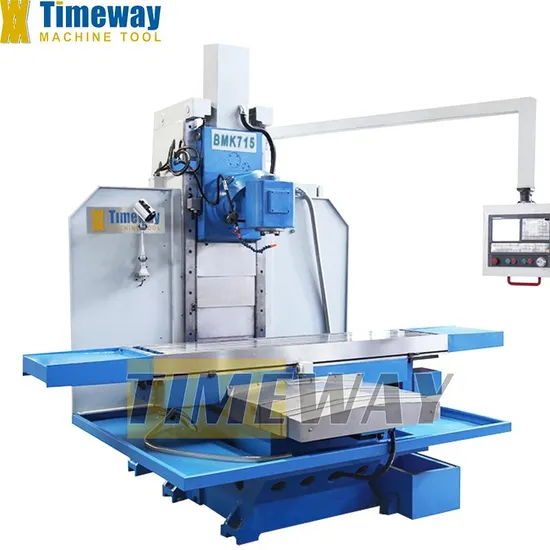

Fresadora CNC Bed Type Milling Machine
| US$30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BMK715 BMK716
Type
Worktable Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
CNC Milling machine
Vertical Machining Center
CNC Controller
Fanuc 0I Mate MD as Standard
Main Motor Power
11kw
Coolant Pump Power
0.09kw
Spindle Taper
ISO50
Transport Package
Wooden Case or Pallet (Can Be Fumigated)
Specification
ISO, CE, TUV
Trademark
TIMAC, TIMEWAY
Origin
China
HS Code
84592900
Production Capacity
100sets Per Year
Product Description
CNC BED TYPE Milling Machine & CNC Machining Center| Standard accessories: |
| SIEMENS 808D |
| Draw bar |
| Milling chuck (ISO50) |
| Taper shell end mill holder (ISO50) |
| Middle cover |
| Work lamp |
| Oil gun |
| General tools |
| Foundation bolt |
| Operation manual |
| Optional accessories: |
| FANUC or others |
| The fourth axis CNC rotary table |
| CNC dividing head |
Technical Parameters:
| Specifications | Unit | BMK715 | BMK716 |
| Table size | mm | 500x2100 | 600x2500 |
| Longitudinal travel (X) | mm | 1500 | 1800 |
| Cross travel (Y) | mm | 650 | 700 |
| T slot (No./width/distance) | mm | 4/20/100 | 5/20/100 |
| Spindle taper | - | ISO50 | ISO50 |
| Verical spindle speed | rpm | 6-1500 (2steps) | 6-1500 (2steps) |
| Distance from horizontal spindle axis to table | mm | 8-660 | 8-660 |
| Distance from vertical spindle axis to column | mm | 610 | 8-660 |
| Distance from vertical spindle nose to table | mm | 0-650 | 0-700 |
| X/Y-axis feed speedTable size | mm/min | 2.5-3000 | 2.5-3000 |
| X/Y-axis rapid feed speed | mm/min | 6000 | 6000 |
| Z-axis feed speed | mm/min | 2.5-2500 | 2.5-2500 |
| Z-axis rapid feed speed | mm/min | 3000 | 3000 |
| Main motor power | kw | 11 | 11 |
| X/Y/Z-axis feed motor torque | NM | 18/23/18 | 18/23/18 |
| Coolant pump power | kw | 0.09 | 0.09 |
| Machine dimensions (L×W×H) | mm | 3220x2420x2800 | 4380x2520x2800 |
| Machine weight | kg | 7300 | 9000 |
***With Semi-closed table shield
