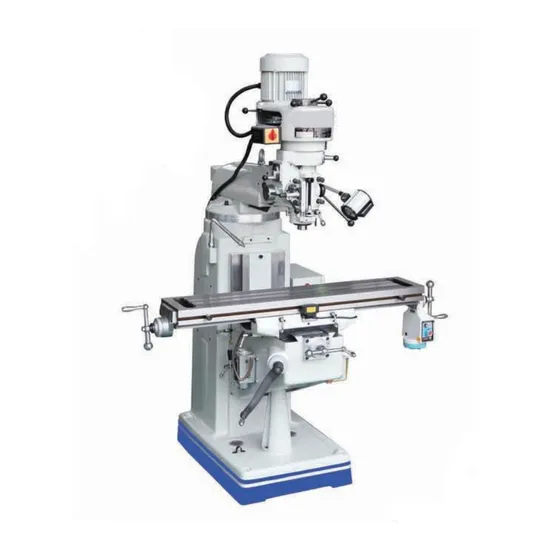

Knee Type CNC Milling Machine
| US$3,100.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6323
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product DescriptionProduct Parameters
| ltem | UNIT | X6323A | X6323B |
| Table size | mm | 230×1067(9×42") 230×1246(9×49") | |
| T slot size | mm | 3×16 | |
| X axis travel | mm | 670 / 850 | 610 / 790 |
| Y axis travel | mm | 310 | |
| Zaxis travel | mm | 390 | |
| Ram cross travel | mm | 315 | |
| Distance from spindle nose to table | mm | 0~350 | |
| Spindle hole taper | Standar R8 (optional NT30/40) | ||
| Quill travel | mm | 127 | |
| Spindle speed | r/min | Standard 16 shift: 65-4500(50HZ) 80-5440(60HZ) Optional Variable speed: 60-4200 | |
| Auto quill feed | mm/rev | 0.04(0.0015")/0.08(0.003")/0.15(0.006") | |
| Spindle motor power | HP | 3(2.2KW) | |
| Milling head swivel | ±90° | ||
| Milling head tilting | ±45° | ||
| 1 miller/pallet | mm | 1400×1476×2030 | |
| 2 miller/pallet | mm | 1450×1570×2080 | |
| 3 miller/pallet | mm | 1450×2180×2080 | |
| G.W/set | kg | 1000 | 1100 |
