Longxing 2.5-5 Microns Nanometer Wet Grinding Pesticides Printing Ink Fertilizer Graphite Pigment Plate Turbine Bar Type Horizontal Bead Sand Mill

Product Description

Product Description

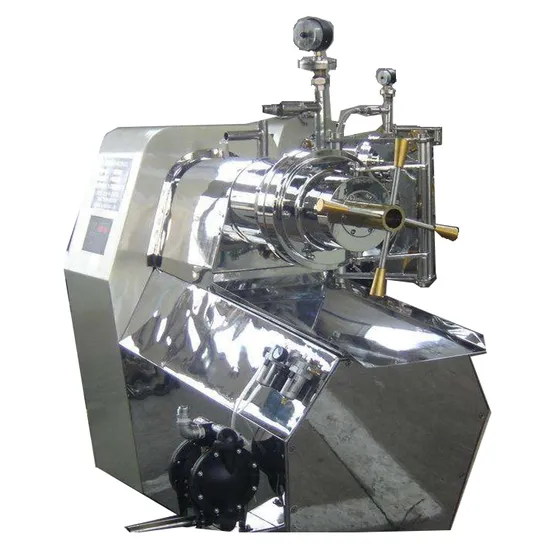

The nano horizontal rod pin sand mill is equipped with rod pins (tungsten carbide material) on the rotor and the cylinder respectively to strengthen the impact and shearing effect on the material and improve the dispersion and grinding effect. The agitator made of tungsten carbide and imported zirconia beads can be used to grind and disperse different products with a wide viscosity range. And it has the structural performance of adjusting the amount of beads to meet the requirements of grinding performance of different products.
Application range of nanometer horizontal rod-pin sand mill:
Fine Chemicals: Pigments, dyes, textile auxiliaries, adhesives, silicone oil emulsions, slurries, surfactants, leveling agents, carbon black, etc.
Coating inks: printing inks, latex paints, architectural coatings, nano coatings, coating additives, carbon black dispersion, printing inks, etc.
Pesticides: insecticides, herbicides, pharmaceutical emulsions, fertilizers, pesticide auxiliaries, etc.
Papermaking: pulp, adhesives, additives, resins, etc.
Working Principle:
The material (fluid) to be ground is pumped into the static grinding chamber with a jacket through a pneumatic diaphragm pump. A special separation device separates the dispersed matter from the grinding medium and discharges it, so as to achieve the goal of accelerating the process of grinding fine particles and dispersing aggregates. The ground and dispersed material is separated from the grinding medium through a dynamic separator and flows out of the discharge pipe. The barrel part of the horizontal sand mill is equipped with a cooling or heating device. This machine uses zirconia beads as the grinding medium. The zirconia beads are easy to clean, have the highest hardness, are more wear-resistant, and have a good grinding effect. When the feed particle size is less than 450 microns, the discharge particle size can reach less than 1 micron, but the inner barrel of the sand mill is relatively worn. This machine can realize mass continuous production, which greatly improves the quality and greatly reduces the cost.
Characteristics
The main features of the horizontal sand mill are advanced design, closed continuous production, uniform grinding and dispersion fineness, good quality and high production efficiency. Double mechanical seal, double protection, zero leakage. The new dynamic separation structure makes the discharge more smooth. This machine is especially suitable for dispersing and grinding products with high viscosity and fine particle size.
1. Excellent material selection, lower noise, more stable operation, to ensure the high quality of the whole machine.
2. Precision dynamic separation device with self-cleaning function.
3.The double-end mechanical seal produced by Germany company is absolutely reliable in the operation of the whole machine.
4. The dual cooling structure design of rotor and stator ensures sufficient cooling of materials by forcing cooling water flow.
5. Manual adjustment of feed pump speed for different product needs.
6. Advanced instrumentation for monitoring feed pressure and discharge temperature.
Product Parameters
Notes:
(1) Our company can design the equipment according to the user's specific requirements.
(2) For the last update of the technology, we will change the technical data without notice, and the correct parameters are subject to the real product.
(3) If you are unsure which type to choose, please call us, and our professional sales engineers will recommend one for you.
