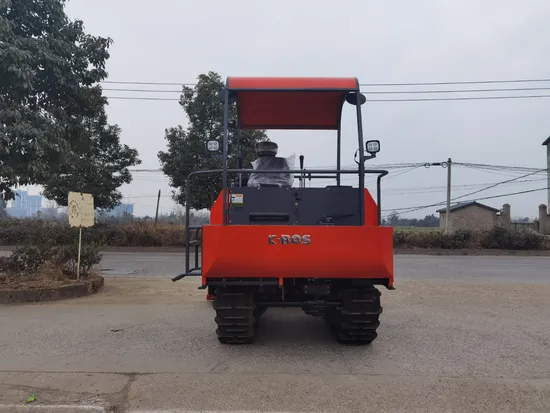

1gzl230 Gzl Series Crawler Tractor with Rotary Cultivator Tiller
| US$10,500.00-12,000.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
1GZL Series
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Certification
CE, CNAS
Color
Red&Yellow
Gross Weight
2010
Container
40hq - 3units
Transport Package
Naked
Specification
CE, SGS, ISO9001
Trademark
K-BOS
Origin
Deyang Sichuan
HS Code
8701300090
Production Capacity
3000PCS/Year
Product Description
| FEATURES |
This tractor adopts crawler walking, use HST one lever operating, hydraulic steering lift , very easy operating;
Ground clearance 320mm, wide guage 1200mm, optional rubber track width 450 or 500, with less ground touch pressure ensure machine good trafficability in mud field;
Three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, ridging, furrowing works etc;
The advantages are:easy operation, low ground pressure, high efficiency.
| SPECIFICATIONS |
| ITEM | PARAMETER | |
| Product | Crawler Tractor Rotary Cultivator 1GZL-230 | |
| Overall Dimension Length×Width×Heights ( mm ): | 3580 × 2470 × 2600 | |
| Weight (kg) | 2010 | |
| Productivity of Operating Hours(hm²/h): | 0.4 ~ 0.7 | |
| Engine | Engine Model | 4D35ZT32/1004 |
| Rated Power ( kw/hp ) | 73.5KW/102HP | |
| Engine Type | Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. | |
| Rated Rotation Speed (r/min) | 2400 | |
| Driving System | Clucth Connecting | Belt |
| Gearbox | Hydraulic type + HST(3F, 3R) | |
| Steering: | Clutch and Brake. | |
| Type of Brake | Wet Disc Brake | |
| Traveling System | Rubber Track(mm): | 400x90x51,450x90x51 |
| Gauge (mm) | 1200 | |
| Theoretical Operating Speed ( km/h ) | 0~16.47 | |
| Minimum Ground Clearance (mm) | 320 | |
| Working Implement | Hydraulic Hitch Type | Semi-partition Hydraulic Hitch |
| Rear Mounted Implements Type | Three-point Linkage | |
| PTO Rotating Speed (r/min) | 720/1000 | |
