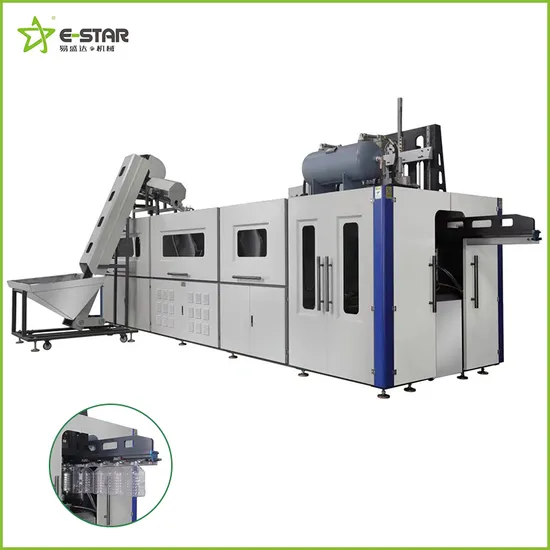

Large Capacity High Speed Pet Bottle Blowing Molding Machine for Water Beverage Bottle Filling
Product Description
Connection drawing
Machine technical parameters
Brief Introduction
E-LC4/0.6L series is the servo-driven variable pitch system two-step fully-automatic pet stretch-blow molding machines(reheat). It has 2 to 4 cavities and the maximum capacity of the products is 5L. It can blow bottles in shapes: carbonated, mineral, pesticide and other packing containers, which is made of plastic of crystalline type, such as PET and PC etc.
1).High Automatization
2).High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3).High Quality: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed: 15000-16000BPH(8-cavity for 600ml), 19000-20000BPH(10-cavity for 600ml)
5).No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost: Low consumption of electricity, air and water.
7).High Transparency: Easy maintenance, absolute safety, visual inspection, low noise.
The Blowing Machine Main Advantages:
(1). The all-electric design enables the machine to run at high speed with stability and precise positioning.
(2). An automatic conveying system increases efficiency in production without the need for manual intervention.
(3). Equipped with an advanced PLC control system and an intuitive touch screen control panel for accurate control.
(4). Stable independent linear operation system ensures simple and reliable operation.
(5). A unique infrared lamp heating system with precise temperature control ensures even heating of preforms and easy adjustment.
(6). The machine features an independent air storage system, meeting different pressure requirements for precise control of actions, pre-blow, and blowing.
(7). The cooling system effectively cools, preventing deformations of bottle necks caused by infrared lamp light during production.
(8). All actions are driven by cylinders and servos, eliminating the need for oil pumps, making it eco-friendly and pollution-free.
(9). Each action is equipped with a safety interlock device, automatically restoring to a safe state in case of faults, ensuring operator safety.
(10). High-pressure mold locking device ensures manufactured bottles have no noticeable parting lines.
(11). Achieves fully automated production, offering high investment returns, significantly boosting production efficiency, and simplifying operation and maintenance.
(12). Human-centric design allows easy understanding of gas paths, circuits, and action statuses, ensuring safety and reliability of operations.
(13). Switch between manual and automatic modes for convenient debugging and installation.
(14). Installation and use of the equipment are extremely straightforward.
(15). Optimized processes and control capabilities minimize waste production.
(16).Mold fixed by drawer design, mold changeover can be easily done in half hour. Product Parameters

Item	UNIT	E-LC4/0.6L	E-LC4/2L	E-LC6/0.6L	E-LC6/2L	E-LC8/0.6L	E-LC10/0.6L	E-LC2/5L	E-LC4/5L
Max.Volume	L	0.6	2.0	0.6	2.0	0.6	0.6	5.0	5.0
Shift Servo		√	√	√	√	√	√	√	√
Stretch Servo		√	√	√	√	√	√	√	√
Clamping Servo		√	√	√	√	√	√	√	√
Separate Preform servo		√	√	√	√	√	√	√	√
Transport		√	√	√	√	√	√	*	√
Theoretical capacity	BPH	9000	8000	13000	11000	16000	20000	2000	4000
Cavity Number	CAVITY	4	4	6	6	8	10	2	4
Heating Pitch	MM	38.1	38.1	38.1	38.1	38.1	38.1	63.5	63.5
Heating Unit Group	SET	2	2	3	3	4	6	4	8
Infrared Lamp	PCS	14	16	21	24	28	42	44	88
Number of Bottle Holder	PCS	106	106	148	148	166	188	91	162
Preform Baked Count	TIMES	10	10	10	10	10	10	24	26
Max.Neck Dia	MM	30	30	30	30	30	30	45	45
Max.Bottle Diameter	MM	72	112	72	112	72	72	210	210
Max.Bottle Height	MM	260	320	260	320	260	260	350	350
Max.Preform Height	MM	120	160	120	160	120	120	180	180
Action Air Consumption	M³/MIN	2	2	3	3	4	4	3	4
Pressure of Action	Mpa	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85	0.8-0.85
Blowing Air Consumption	M³/MIN	8	8	10	10	12	16	10	16
Pressure of Blowing	Mpa	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2	2.8-3.2
Chiller Specification	HP	8	8	10	10	10	16	10	16
Machine Power	KW	<20	<28	<36	<45	<52	<60	<28	<50
Installed Power	KW	160	170	200	220	240	300	180	320
Size	M	3.5*1.7*2.1	3.8*1.8*2.1	4.3*1.7*2.1	5.4*2.1*1.9	5.4*2.1*2.1	6.2*2.1*2.1	3.7*2.25*2.15	8.4*2.2*2.15
Weight	KG	4500	5000	6000	6500	7500	8200	6000	130000
The theortical output is based on 500ml l ottle shape,the final production capacity is based on the preform,bottle design and volume.
The high pressure air consumption is based on the 500ml bottle,the final con!
Standard configuration:√ Non-configurable: *

Preform loading and transfer system:
Mold Clamping:
Stretching system:
Heating system:
Pitch system:
Machine configuration list:

Name	Country	Brand
Inductive Sensor	Japan	Omron
Magnetic Sensor	Taiwan	KITA
AC contactor	France	Electric SA
Switching power supply	Taiwan	Delta
Acting valve	Japan	SMC
Blowing valve	Taiwan	Airtac
Cylinder	Japan	SMC
High pressure filter	Japan	SMC
High pressure pressure reducing valve	Japan	SMC
Silencer	Japan	SMC
Clamping rail	Taiwan	PHI
PLC	China	Xinje
Touch screen	China	Xinje
Servo motor	China	Xinje
Reducer	China	Xinje

Company Profile


Taizhou Easy Star Machinery Co.,Ltd. is a professional manufacturer of blow molding machines,preforms and plastic molds in China. We can provide a full range of services, whether it is molds, production machines, complete production lines, E-star can give you the best solution.
E-star's main products are various types of blowing machines. Plastic molds and other series of products. The products have the advantages of high degree of automation and stable performance. And are well received by domestic and foreign customers. Among them. The full-electric blow molding machine has reached the international leading level, and the products are exported to Europe, America, the Middle East, Southeast Asia and other places. Even in harsh climates(cold or tropical),E-star blow molding machines can operate stably. We have pre-sales and after-sales service teams, so your machine can get the best guarantee.
With more than 20 years of development experience and a highly fexible production development team, we can discuss and customize requirements for each case to create a financial tool that meets your needs. Whether it is used in Beverages,Water, Edible oil,Daily necessities, Cosmetics,etc.,
E-star's blow molding machines can help you complete the production of PET bottles of various capacities.










FAQ
Q:Where is your factory located?
A:Our factory,near Shanghai, located in Taizhou,China
Q:What is your trade term?
A:Normally FOB NINGBO, if customer country requires, also can accept L/C at sight.
Q:What is your payment term?
A:30% down payment against order confirmation, 70% balance payment prior shipment.
Q:Have blow machine 100% assembled well in stock?
A:No. All blow machine will be assembly produced according to your order.
Q:What is your delivery time?
A:Usually in 45-60days, depends on your projects.
Q:What about installing in customer factory?
A:After machine arrived at your factory, please prepare water, electric,air and preform, then we will arrange engineer to install machine and train your workers, the longest time to free install shall be in one week, you should afford engineer air tickets, food, hotel,transport.
Q:Guarantee time?
A:One and a half year guarantee, not man-made.
