0.8- 6mm Industrial High Accuracy Drill Sharpener Mr-6A

Product Description

Product Description

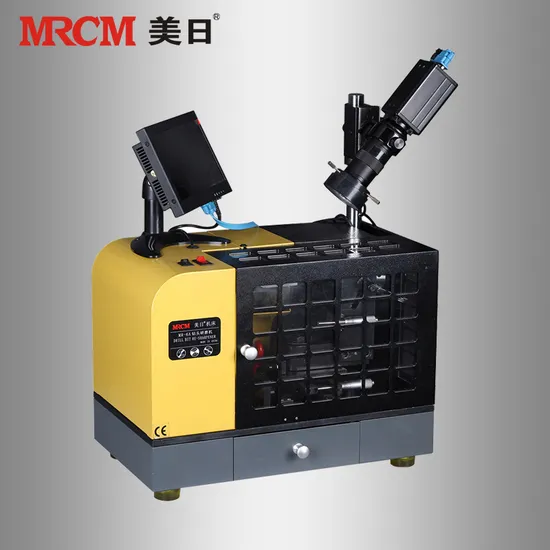

MR- 6A Industrial Electric High Precision Drill Bit Grinder With Camera 1. MR-6A drill bit grinder .With the camera to set the drill grinding and do the measure after grinding. It can
grind the drill bit with flat relief angle and various point thinning. Grinding with travel block control ensures
the bit high accuracy, and not only the penetrating power, but also longer bit life.
2. Grinding is accurate and rapid, easy operation. Economical price that greatly reduces the cost and improves
the use effect.
3. The electrically controlled and poweful DC motor, stable frequency, strong horsepower and lone service life.

Specification

Model	MR-6A
Grinding Range	Φ(0.8)1-Φ6mm
Point Angle	95°-135°
Power	AC220V
Motor	250W
Speed	4400rpm
Dimension	62*34*33
Weight	40kg
Standard Equipment	Grinding wheel :CBN (for HSS)×1
	Eleven collets: Φ1,Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ4.5,Φ5,Φ5.5,Φ6
	Collet chuck:(Φ1-Φ6)×1
Option Equipment	Grinding wheel :SD (for Carbide)

Detailed Photos

Details: MR-6A
DRILL BIT SHARPENER,
More than15 YEAR BENCHMARKING PRODUCTS WITH A GREAT REPUTATION

Still use a simple type of operation design, without any grinding experience can also quickly work,
Whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.
EASY TO DO THE DRILL SETTING
Camera positioning,more accurate,higer precision
EASY TO SHOW THE DRILL
Magnified projection location:130W pixel CMOS,effecitve pixel 1280(H)*1024(V),15 frame/second,definition
650VT-lines
EASY FOR DRILL GRINDING
The standard of high precision ER16 collet chuck set, special locking wrench,clamping faster,
higer precision,grinding easier,Precision grinding,fast and efficient

Standard accessories:

grinding wheel :CBN (for HSS) ×1

Eleven collets: ф3,ф4,ф5,ф6,ф7,ф8,ф9,ф10,ф11,ф12,ф13

collet chuck:(ф2-ф14) ×1

Optional accessories:

grinding wheel :SD (for Carbide)

ф2.5,ф3.5,ф4.5,ф5.5,ф14,ф15

collet chuck:ф15

Reviews

Packaging & Shipping
Company Profile

MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively improve
the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder,
saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero
positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the
domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national
patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as
Japan, Europe countries and so on.
