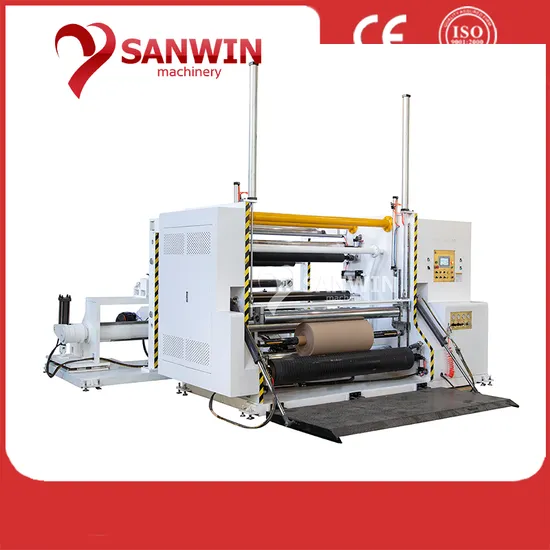

High Speed Automatic Jumbo Roll Self Adhesive Paper Slitting Machine
| US$5,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FQ-1600
Work Method
Round Knife Cutting
Structure
Frame Part
Packaging
Case
Applicable Process
Process Materials
Suitable Substrates
Paper
Packaging Material
Wood
Automatic Grade
Automatic
Main Function
Slitting and Rewinding
Speed
150-300m/Min
Voltage
380V
PLC
Yes
Touch Screen
Yes
Transport Package
Wooden Box
Specification
3900x1700x1250mm
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
8441100000
Production Capacity
500 Sets/Year
Product Description
Automatic High Speed Jumbo Roll Paper Slitting MachineApplication
This type automatic slitting machine is suitable for slitting wide roll BOPP,PET, Non woven fabric ,Paper etc .according to production let roll material slitting, scrap waste side. The structure of the complete machine is compact, fast with high efficiency, easy and stead operation
Feature
1. This machine install a round knife device, it can slit the rolls paper within 350g/ .
2. Independent master control screen, more flexible and even easier operation.
3. Automatic deviation-rectifying of releasing, photoelectric eye is suitable for tracking the edge and color of transparent material.
4. Releasing tension adopts magnetic powder clutch control.
5. Rolling adopts magnetic clutch control.
6. Automatic slitter edge blowing-inhaling device.
7. Automatic meter counting of material moving length.
Main Technical Parameter
| Unwind Width | 1600mm |
| Unwind Diameter | φ1000mm |
| Rewind Diameter | φ1000mm |
| Working Speed | 0-300meters/min |
| Mini Slitting Width | 50mm |
| Speed regulation | By Inverter(5.5kw) |
| Material Loading Device | Airshaftφ3inch |
| Loading Type | Pneumatic |
| Rewinding Type(2 PCS) | Air Inflation Shaft |
| Power Supply | 380V/3Phase/50Hz |
| Measurement | 3000*1700*1550mm |
| Weight | 3200kgs |
| Total Power | 8kw |
| Inverter | 5.5KW |
| Main Motor | 5.5 |
| PLC CONTROL | Simens |
| Touch Screen | China |
1.Unwinding unit (Auto load material )
2.Cutting Knives
3.Rewinding Part
4.Touch Screen +PLC
