Basic Info.
Type
Volumetric Filling Machine
Automatic Grade
Semi-Automatic
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Packaging Material
Sticky Paste
Max Suction Lift Capability
2m
Machine Size
About 355*300*265mm
Net Weight/Gross Weight
About 6.7kg/8kg
Transport Package
Wooden Case
Production Capacity
10-30bottles/Min
Product Description

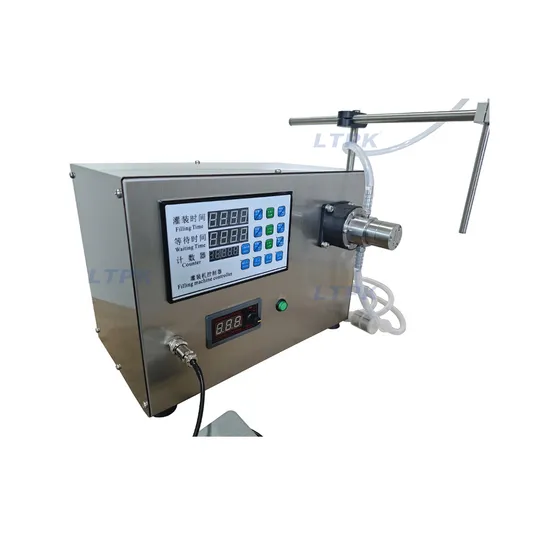

Product Description This automatic filling machine is equipped with magnetic pump,which can ensure the filling accuracy.The filling speed of each nozzle can be controlled separately. It has compact design, beautiful appearance,wide application field, and it worked with imported parts, so that the the machine has a good performance.
Product Parameters
Product name | One head 4L magnetic pump filling machine |
Model | LT-MPF4L |
Voltage | 220/110V |
Power | 120W |
Suggest filling range | 5-1000ml |
Max flow | 4L/min |
Filling accuracy | ±1% |
Max suction lift capability | 2m |
Filling speed | 10-30bottles/min |
Machine size | About 355*300*265mm |
Package size | About 400*300*300mm |
Net weight/Gross weight | About 6.7kg/8kg |
Product Application Suitable for various corrosive, low viscosity, and non particulate liquids. For example: various chemicals (solvents, acetone), oil (edible oil, essence), cosmetics (toner, makeup remover, spray), food (milk, soybean milk), beverages (fruit juice, wine), seasonings (soy sauce, vinegar), high and low foam liquid (care liquid, detergent)
Product Details FAQ Q1: Are you factory or trading company? A: We are manufacturing factory .
Q2: Can you guarantee your quality? A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it? A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines? A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: What's the payment terms and trade terms for new customers? A: Payment terms: T/T, L/C, D/P, O/A, etc.
Q6: What's the Minimum Order Quantity and warranty? A:MOQ:1 set Warranty:12 months,some customized products will be 24 months.
Q7: Do I need to pay for the extra cost like tax or duty ? A:Yes, custom duty / tax it's the buyer responsibility need to pay it, the shipping cost it's not included the tax.
