Vertical Small Plastic Injection Machine Moulding Machinery Molding Machine

Product Description

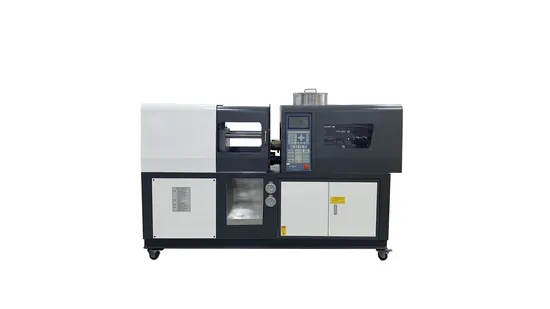

XH-436 Small injection molding machine Product Application
This Horizontal type PVC plastic injection molding machine reduces and improves the production machine, which has little volume and strong removability, injection molding machine is suitable for classroom teaching and the making of the small simple. This injection molding machine contains opening mould and closing mould parts, melting plastic injection parts, machine body, heating system, control system, and charging device.

SMALL INJECTION MOLDING MACHINE TECHNICAL PARAMETER
Specifation	Model No.	Unit	20T	25T	40T	60T
Injection unit	Screw diameter	mm	22	22	25	28
	Injection pressure	kg/cm²	2170	2170	1960	2170
	Injection quantity	G/OZ	40/1.4	40/1.4	64/2.2	80/2.8
	Screw stroke	mm	110	110	110	140
	Nozzle stroke	mm	150	150	200	200
Clamp Unit	Clamping Force	Tons	20	25	40	60
	Platen size	mm	380*290	380*290	430*430	470*470
	Tie-bars spacing	mm	250*200	250*200	280*280	310*310
	Mini mold thickness	mm	100/40	130/100	120/160	160/200
	Mold opening stroke	mm	215	215	215	250
	Max mold opening distance	mm	255/315	315/345	340/380	410/450
Power Unit	Max hydraulic pressure	kg/cm²	140	140	140	140
	Motor power	KW	4(5HP)	4(5HP)	4(5HP)	7.5(10HP)
	Total power consumption	KW	6	6	6.4	11.5
Other	Machine weight	kg	1000	1000	1500	2000
	Machine dimensions	mm	2020×600×1400		2400×700×1500	2600×700×1500

Special models can be designed according to customers' requirements.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Reduces and improves the production machine, which has little volume and strong removability.
3) Suitable for classroom teaching and the making of the small simple.
4) Has simple structure, easy operation, and has no noisy and no pollution.
5) Adopt 220V voltage, can be used in any place with electric, and will not restrict by industrial electricity.

Detailed Images
Die head
Here specifies the shape of the plastic finished product, you can add different die heads, after the plastic is heated and melted, under the action of the back seat pressure, the plastic is filled with the die head, to be cooled and formed, you can get the desired plastic products
Njection nozzle
From here thIe molten plastic raw material is injected into the die head, so that the plastic raw material is formed in the mold of the die head to
get the desired shape of the plastic product
Test sample
Company Profile
Guangdong Xihua Machinery Co., Ltd. is a research and development, manufacturing, sales, service in one of the laboratory equipment high-tech enterprises. Products are widely used in plastics, rubber, silicone, petrochemical, wire and cable, environmental protection, new energy, medical, automotive and other industries. Has a number of domestic advanced fully automated production equipment, with a trial production testing laboratory in line with national standards, equipped with advanced testing and analysis instruments.
Xihua has been working closely with many top 500 enterprises, well-known domestic enterprises and scientific research institutions for many years, and the international market covers Russia, Germany, Australia, the United States, Canada and Mexico. Brazil, India, Saudi Arabia, Singapore, Malaysia, South Korea, Thailand, Turkey, Philippines, Vietnam, etc.
Packaging & Shipping
We first wrapped the fuselage with a winding film and fixed it initially. Then it is further wrapped with pearl cotton to avoid damage to the machine due to bumps on the road, and finally the wrapped machine is placed in a wooden box for transportation to ensure the safe transportation of the product.

Packaging
Size	2020*600*1400mm
Weight	About 100kg
Packaging Details	Wooden box
