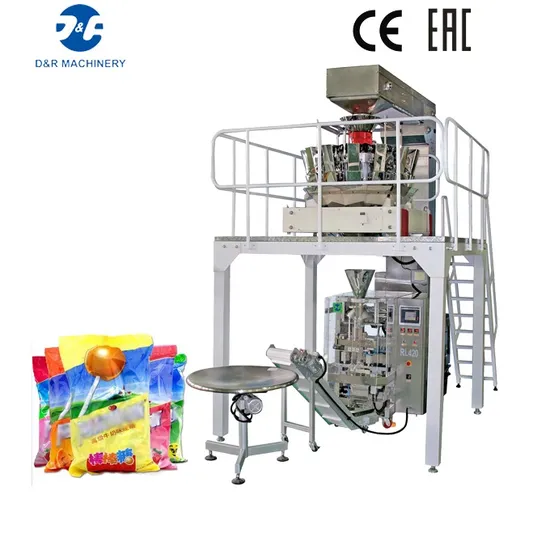

Popped Food Packaging Machine Automatic Vertical Packing Machine

Product Description

Popped Food Packaging Machine Automatic Vertical Packing Machine
Production Specification:
DRRL422 Multi-head weighing and packing machine system

Model	DRRL420	DRRL422	DRRL530
Bag size	L80-300mm W 80-200mm	L 80-300mm W 80-200mm	L100-350mmW100-250mm
Packing speed	25-80bags/min	2×80bags/min=160 bags/min	25-70 bags/min
Electrical source and power	AC220V, 50-60Hz, 3.0KW	AC220V, 50Hz-60Hz, 6.0KW	AC220V, 50-60Hz, 5KW
Air pressure and gas cost	6-8kg/m2,0.15m3/min	6-8kg/m2,0.3.m3/min	6-8kg/m2, 0.25m3/min
Weight	500kg	950kg	700kg
Outer dimension	L1650×W1300×H1700mm	L1800×W2020×H1550mm	L1600×W1150×1800mm

Usage:
Suit for automatic packing of popped food, fruit, candy, biscuit,deep frozen food, melon seeds, roasted nuts, pips and other granule materials.
Main performance and functional characteristics:
1. Equipped with safety protection, conform to the firm's safety management requires.
2. Use intelligent temperature controlling machine to have accurate temperature control, ensure the artistic and neat seal.
3. Use PLC control servo electrical double-pull or single pull membrane structure, super touch screen structure drives the control centre; maximize the whole machine's control precision, reliability and intelligentized level.
4. This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging(exhausting) and products transporting automatically as well as counting.
5. Have error indicating system, helping handle the trouble immediately
6. Make block bags and hanging bags according to customer's different requires.
Selected installation:
Measuring cup equipment
Screw measuring equipment
Electronic automated measuring steelyard
Mixed steelyard
Detailed Images:
Suit for automatic packing of popped food, fruit, candy, biscuit, deep-frozen food, melon seeds, roasted nuts, pips and other granule materials.
Application:
