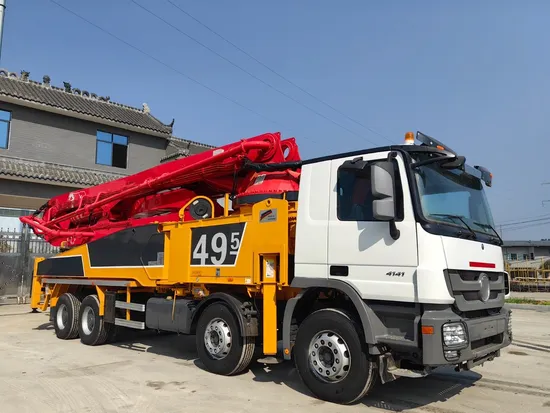

Concrete 55 57 58 60m 61m 38-48m 56-60m Machine 49-55m Pump Truck
Basic Info.
Model NO.
62m
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
180m²/h
Feeding Height
1400mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000
Condition
New
Color
Green
Engine Power
297kw
Engine Displacement
10518ml
Front Track
2110mm
Fuel Type
Diesel
Transport Package
Bulk / Roro
Specification
9112*2496*2980 mm
Trademark
Jiuhe
Origin
Hunan
HS Code
8705909100
Production Capacity
1
Product Description
Product Description
Concrete 55 57 58 60m 61m 38-48m 56-60m Machine 49-55m Pump Truck
Energy-saving With cycle times of up to 29 per minute (at 12MPa), pumpefficiency is increased up to 25% while fuel consumption is decreased by up to 10%. Safey
Our C10 series truck mounted concrete pump exemplifies Top brand's precise, rigorous manufacturing philosophy and uncompromising focus on safety.
Highly Wear Resistant Part
The highly wear resistant parts improve efficiency and reduce down time. Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Detailed Photos
Product Parameters
| Vehicle parameters | Overall length | | mm | 13860 |
| Overall width | | mm | 2550 | |
| Overall height | | mm | 4000 | |
| Total weight | | kg | 44000 | |
| Boom vertical height | | m | 56 | |
| Boom horizontal length | | m | 51 | |
| Boom vertical depth | | m | 36.6 | |
| Mini. unfolded height | | m | 15.2 | |
| Boom leg parameters | The first section of the boom | length | mm | 11390 |
| turning angle | | 89° | ||
| Second section arm | length | mm | 9230 | |
| turning angle | | 180° | ||
| Third section arm | length | mm | 8750 | |
| turning angle | | 180° | ||
| Fourth section arm | length | mm | 11070 | |
| turning angle | | 240° | ||
| Fifth section arm | length | mm | 8080 | |
| turning angle | | 210° | ||
| Sixth section arm | length | mm | 3350 | |
| turning angle | | 110° | ||
| Turntable rotation angle | | | ±360° | |
| Expansion width of front outriggers | | mm | 9470 | |
| Rear outrigger expansion width | | mm | 12680 |
