Xf Ftdi Chip Isolated USB to Nir Converter Networkable Nir RS485

Product Description

XF FTDI Chip Isolated USB to NIR Converter Networkable NIR RS485

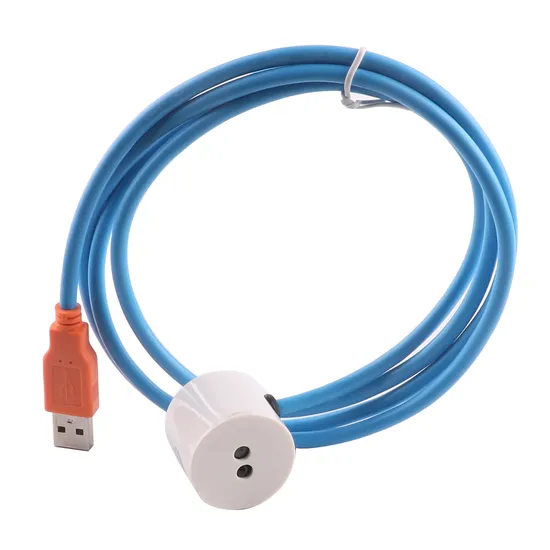

1.Product Exterior View
2.Normal Technical Feature & Parameter
Model: AP-C2011
Brand: XFDZ
Type: USB
Network engineering: USB-near infrared (NIR)
Applicable equipment:Electricity meter Gas meter Water meter
Wire Length:1.5m
Packakge: PE Bag
Converter type: adapter
FTDI chip Isolated USB to NIR converter can be networked
Suitable for: foreign energy meter, gas meter, water meter reading data acquisition
New original UK FTDI chip
Taiwan Everlight infrared pair tube
Ameson Voltage Monitor
Industrial meter reader
Near infrared, wavelength 940nm
Infrared head size: diameter 32.5mm, height 27mm (size for reference only, actual error ± 2mm)
IEC standard industrial grade, converter using UK FTDI chip, ±15KV ESD protected RS485 transceiver circuit, Taiwan Everlight industrial grade optical receiver/transmitter
Support full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc., with transmission rates of: 300/600/1200/2400/4800/9600/19200bps.
Magnet adsorption type, easy to fix on the optical interface device.
Between infrared IR by the photocoupler, isolation power module for isolation, engage in interference, communication stability.
USB to near infrared for monitoring system data acquisition, smart city data acquisition, grid power monitoring data acquisition, energy consumption monitoring system data acquisition, photovoltaic class and other systems monitoring data acquisition, intelligent monitoring data acquisition, intelligent robotic data acquisition, intelligent security system data acquisition, cloud platform data acquisition, energy meter calibration and re-checking table on a variety of applications with optical communication interfaces.
3.Applications
4.Advangtages 1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 3-5 year quality assurance after shipment.
7) After sales technique support
5.Certificates
6.Packing&Shipping Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XingFeng brand packaging are also available
Shipping:
Export port:Ningbo or Shanghai, China
Shipping way:By sea, by air, by courier
Delivery time:3 days to 30 days depends on actual orders.
7.Company Profile
Yue Xingfeng Electronics Factory is a 2002 years intelligent sanitary ware manufacturingelectromagnetic valve of mediumsized enterprises,Professiona sanitary ware forhousehold electrical appliances, induction sanitary ware, intelligence, form a completeset of automatic control industry.Factory is located in yueqing city east industrial zone.with perfect r&d, manufacturing,marketing and logistics management system.Xing feng and insist on techonlogical innovation has been followed, relying on the scaleand professional brand service, constantly bigger and stronger,Products are mainlydicided into:induction series, intelligent toilet series intelligent wei yu of form a completeset of solenoid valve.The material is divided into brass, plastic series.Xing feng electronic through continuous efforts, innovation, and strive to industry leadingenterprises, let each use of establishing product satisfaction, is our never-ending pursuitof goals.
8.FAQ
1.PackingTransparent plastic bag + white small box + neutral carton + palletCustom packaging are available, XingFeng brand packaging are also available 2.Shipping Export port: Ningbo or Shanghai, ChinaShipping way: by sea, by air, by courierDelivery time 3 days to 30 days depends on actual orders. 3.Payment TermsWe accept T/T, L/C, Paypal, western union,etc. 4.Samples PolicyFor regular fittings below 2 pcs, free samples against your courier account or you pick up from us.For custom items, we will discuss by email or by phone chat. 5.Return PolicyWe assure you 3 year policy after shipment. If there is any problem during this period, please contact us for support.
