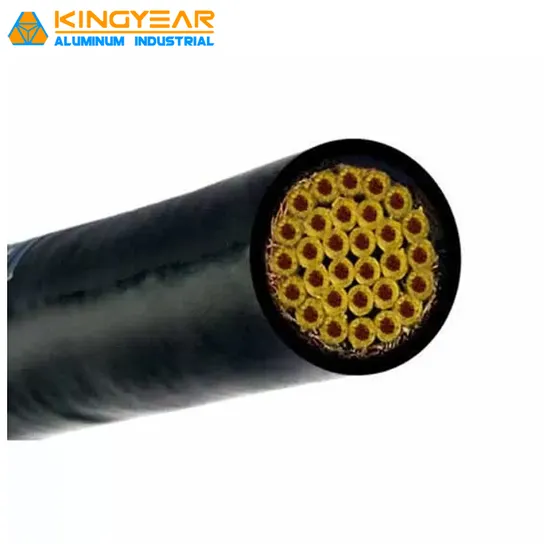

450/750V 18 Core 2.5mm2 Copper Conductor PVC Insulated Swa Armored Control Cable

Product Description

450/750V 18 Core 2.5mm2 Copper Conductor PVC Insulated SWA Armored Control Cable Construction for armored control cable:
1 ..... Solid (RE) or stranded (RM) bare copper
2 ..... PVC or XLPE
3 ..... Inner sheath or wrapping tape
4 ..... Armour, SWA or STA
5 ..... Outer sheath of polyvinylchloride (PVC). Applications of 450/750V 18 Core 2.5mm2 Copper Conductor PVC Insulated SWA Armored Control Cable: The product is suitable for connection in control, signal, protection circuit and measuring system with rated power-frequency voltage 450/750V or 0.6/1KV.
Operating characteristics of 450/750V 18 Core 2.5mm2 Copper Conductor PVC Insulated SWA Armored Control Cable:
1.The maximum permissible continuous operating temperature is 70ºC
2.The lowest installation temperature of the cable is 0ºC.
3.Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable; not less than 12 times of the completed cable diameter for armoured or copper tape screened cable; not less than 6 times of the completed cable diameter for screened flexible cable.
Technical data for reference, any customized is available.

Type	Description	Main Application
KYJV	Copper conductor XLPE insulated and PVC sheathed control cable	Laying indoors,in trenches, in ducts and directly in ground
KYJVR	Copper conductor XLPE insulated and PVC sheathed
	flexible control cable
KYJVP	Copper conductor XLPE insulated and PVC sheathed control cable	Laying indoors,in trenches, in ducts directly in ground and other places that interference-resistance is requested.
	with copper tape lapping screen
KYJVP2	Copper conductor XLPE insulated and PVC sheathed flexible control
	cable with braiding screen
KYJVRP	Copper conductor XLPE insulated and PVC sheathed control cable
	with copper tape longitudinal screen
KYJVRP2	Copper conductor XLPE insulated and PVC sheathed flexible control
	cable with copper tape lapping screen
KYJV22	Copper conductor XLPE insulated and PVC sheathed control cable with steel tape armour	For flxed installation,laying indoors, in trenches and ducts,directly in ground where heavier mechanical force withstood
KYJV32	Copper conductor XLPE insulated and PVC sheathed control cable	For laying indoor, in tunnels, ducts, conduit and direct burial etc. Permanent place, able to bear greater mechanical force
	with steel wire armour
KYJVP2-22	Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape lapping screen	For fixed installation,laying indoors,in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood.

Package of 450/750V 18 Core 2.5mm2 Copper Conductor PVC Insulated SWA Armored Control Cable
About us
Henan Kingyear Aluminum Industrial Co., Ltd was founded in 2006, located in Gongyi industry area of Henan Province. Our company consists of 3 main subsidiaries, business specialized in develop, manufacture and distribution of Aluminum products including Aluminum Plate/sheets/coils, Aluminum Curtain Wall, Aluminum Conductor & Cables. Our factories zone occupies more than 1200,000 square meters and the employees' number has exceeded 800.
We, Kingyear, dedicate ourselves to be a manufacturer of providing comprehensive solutions and customized services to help our customer to solve their problems and improve their profit. Welcome to send enquiries, you will get the best price and quality service. Also welcome to visit our company for a field tour.
Testing Equipment for 450/750V 18 Core 2.5mm2 Copper Conductor PVC Insulated SWA Armored Control Cable
