Hasivo 8 Ports 24/48V Auto-Matching Poe L2 Managed Switch with 2 Ports 1000m SFP Uplink

Product Description

Product introduction

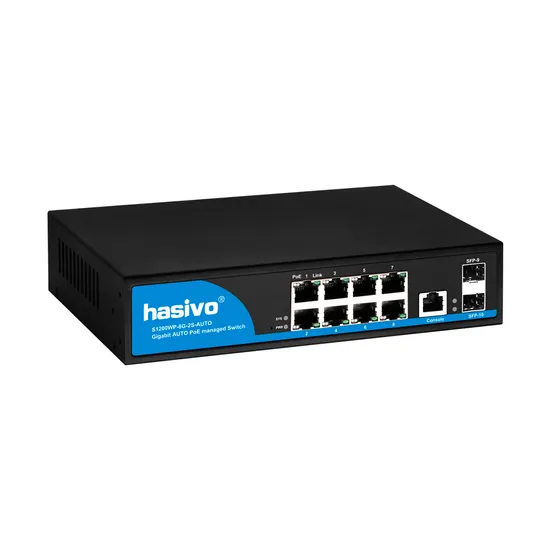

S1200WP-8G-2S-AUTO is an innovative fully Gigabit managed fully automatic PoE switch independently developed
by hasivo, which supports 1-8 full ports at the same time48V active (ieee802.af/at) Poe and 24V active (hasivo autopse)
PoE can easily meet the power supply requirements under compiex conditions; Perfect responselt is used for WiFi
network construction of network operators and commercial enterprises. The maximum power of a single port is 30W, and
the maximum output of the whole machine is 150W. Support flexible 802.1Q VLANRich iayer-2 network functions such as
port monitoring, port convergence, QoS, bandwidth control, etc., easy to manage and maintain
Product characteristics
hasivo innovative power supply technology: support both active (IEEE802.3af/at) and passive (24V) PD equipment
power supply
Fully automatic identification of matching power supply mode, main power on
Support 45+78- active PD detection to effectively protect the access security of non PoE devices
Support 12+36 active PD(IEEE80.3af/at) detection, and correctly match the power supply electric
Support the management and maintenance of devices through the web interface
Support port convergence, effectively increase link bandwidth, realize link backup, and improve link reliability
Support802.1Q VLAN, QoS, bandwidth control and storm suppression
Support port convergence, port mirroring, port monitoring, and loopback protection
HARDWARE FUNCTION

Model	SW1200-8G-2S-AUTO
Product mame	24V/48V automatic matching 2SFP+8GE Full Gigabit L2+ Managed PoE Switch
Fixed Port	8*10/100/1000Base-TX PoE port(Data/Power) 2*1000M SFP
PoE Ports	8*24V/48V automatically identify the matching POE port 1-8 port support detection 24V power supply, max 30W/port 1-8 port supports IEEE802.3af/at, max 30W/port, PoE out
Console port	1*console port
Reset Key	1
PoE Pin	48V:12+36- 24V:45+78-
PoE Bridge	max 150W
Bandwidth	20Gbps
Packet Forwarding	14.88Mpps
MAC	8K
Buffer	4.1M
FLASH	128MBytes
RAM	128MBytes
CPU	500MHz
DDR	1G DDR3
Jumbo Frame	10000Bytes
VLAN Address	4K
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) SFP:1000M single and multimode optical module with maximum distance ≤120km (depending on the optical module)
LED Indicator	PWR:Power LED SYS:System LED 9-10:SFP connection indicator PoE:48V ON:orange light is always on;24V ON: orange light flashes Link:10/100/1000M(green)
Power	Built-in power AC:100-240Vac 50-60Hz 2A max 160W
Operating Temperature /Humidity	-10~+55ºC;5%~90% RH Non coagulation
Storage Temperature /Humidity	-40~+75C;5%~95% RH Non coagulation
Product /Packing size(L*W*H)	206mm*140mm*45mm 265mm*220mm*68mm
N.W/G.W(kg)	1.1kg/1.3kg
Installation	Desktop (optional wall +machine hangers)
Lightning Protection level	6KV8/20us; IP30
Certificate	3C;CE-EMC EN55032;CE-LVD EN62368; FCC Part 15 Class B;RoHS;
Warranty	Whole device for 1 year(Accessories not included)

SOFEWARE FUNCTION

Model	SW128GP-2S-AUTO
Network Protocol	IEEE 802.3x IEEE802.3,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z IEEE 802.3ad IEEE 802.3q,IEEE 802.3q/p IEEE 802.1w,IEEE 802.1d,IEEE 802.1S,IEEE 802.1X
MAC	Support 16K MAC address,auto aging and learning
VLAN Configuration	Support port-based VLAN Up to 4096 VLANs Support Voice VLAN, can configure Qos for voice data 802.1Q
Spanning Tree	STP(Spanning tree protocol) RSTP/MSTP(Rapid spanning tree protocol) EPPS/EAPS(Ring network protocol) 802.1x
Port Aggregation	Support 8 groups of aggregation,each group support up to 8 ports;
Port Mirroring	Support many-to-one port mirroring
Loop Guard	Support loop protection,real-time detection,quick alram,concise location,Intelligent blocking,automatic recovery
Port Isolation	Support downlink ports isolate from each other and communicate with uplink port as well
Flow Control	Half duplex based on Back pressure; Full duplex based on PAUSE frame
Negotiation Mode	Port support auto negotiation function(self-negotiation transmission rate and duplex mode)
Speed Limitation	Bandwidth management based on port input and output
Multicast Control	IGMPv1/2/3 and MLDv1/2 Snooping GMRP protocol registration Multicast address management,multicast VLAN,multicast routing port,static multicast address
DHCP	DHCP Snooping
Storm Suppression	Support unknown unicast,multicast,unknown multicast,broadcast type storm suppression Storm suppression based on bandwidth adjustment and storm filtering
Security	Support User port+IP address+MAC address ACL based on IP,MAC Support security properties of number of MAC address based on port
QOS	802.1p port queue priority algorithm Cos/Tos,QOS remark WRR(Weighted Round Robin), weighted priority rotation algorithm WRR,SP,WFQ priority scheduling modes
Cable Sequence	Auto-MDIX; auto detection on straight-through and cross-over cable
System maintenance	Upgrade package upload System log viewing WEB recovery factory configuration
Network Management	WEB interface management CLI management based on Telnet,TFTIP,Console SNMP V1/V2/V3 management RMONV1/V2 management RMON management
PoE function	Port switch Schedule arrangement and timing switchVoltage, current and power display System total power display and system total power configuration PoE watchdog,automatic restart after device crash,regular restart,support IP binding restart Support port power configuration(AF.AT HiPoE.BT) Support over power indicator prompt Support port PoE type configuration (48V/24V power supply)
