High Selective Solar Absorber Coating for Solar Collector with 0.4mm Thickness

High Selective Solar Absorber Coating for Solar Collector with 0.4mm Thickness

US$11.00
50-499 Square Meters
US$10.00
500+ Square Meters

Basic Info.

Model NO.
0.4mm
Working Temperature Range
Low/Middle/High Temperature
Type
Flat Panel
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
No Tube Used
Thickness
0.4mm
Product Name
Blue Selective Coating
Use
Heat Water
Size
0.4mmx1250mmxc
Width
1000mm-1250mm
Color
Dark Blue
Material
Aluminum Alloy
Absorptance
92-96%
Certificate
ISO9001
Absorber Coating
Highly Selective Vacuum Coating
Surface
PVD Coating
Transport Package
Exporting Wooden Case
Specification
0.4mm
Trademark
SMMT
Origin
Fujian, China

Product Description

The key accessory of every solar collectors is the solar absorber. Its efficiency is given by a high absorptive and low emission rate.
SMMT high selective solar absorber "Thermal Collector is manufactured by advanced PVD coating devices, which achieve absorptive rate up to 95% and heat emission lower than 5%. It is also optimized to the wavelengths of sunlight with the high intensity to bring the maximum heating performance.
SMMT high selective solar absorber "Thermal Collector" is made with continuous air-to-air producing vacuum coating equipment, which give us the possibility to coat with high efficiency and speed. It combines sputter process and electron beam technology to form the selective absorber layers on metal strips.
This kind of PVD still achieves both the high quality of layers and the environment protection.
SMMT will be a reliable long-term cooperation partner for flat plate solar water heater and evacuate tube water heater supplier.
Product & Applications
Product Parameters

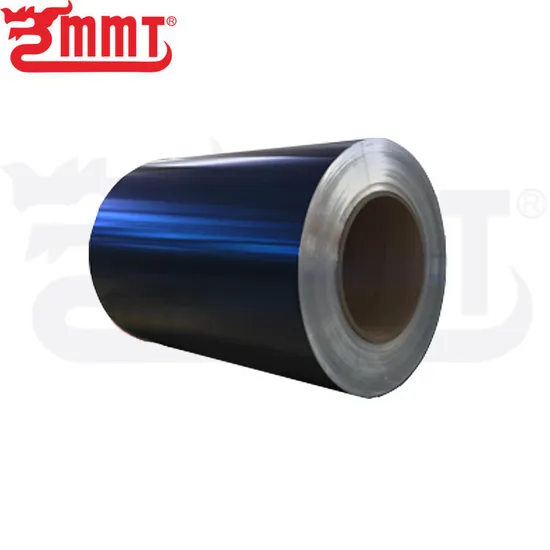

Product Name High Selective Solar Absorber "Thermal collector"
Substrate Specification Material Aluminum Strip
Width[mm] 1000-1250
Standard Thickness[mm] 0.3-1.0
Standard Alloy 1050
Temper H18
Density [g/cm3] 2.7
Thermal Conductivity [W/(m.K)] ~230
Tensile Strength [N/mm2] >=135
Yield Strength [N/mm2] >=100
Optical Property Solar Absorptive Rate(%) 95±2
Heat Emission Rate(%) 5±2
Payment Term TT, LC
Packing 1. Product surface attached with proctective film
2. Plastic film sealed
3. Anti-collision foam
4. Drying agent
5. Seaworthy exporting wooden case
Delivery Time Future goods: 25-35 work days; Ready Stock: 7- 10 days
