Heavy Duty Metal Processing Frt-4022b CNC Gantry Machining Center

Heavy Duty Metal Processing Frt-4022b CNC Gantry Machining Center

US$75,600.00-486,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FRT-4022
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
ISO 9001
Condition
New
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Type
Gantry Type Milling Machine
Object
Gear, Shaft, Machinery Parts
CNC Operating System
Siemens/Fanuc/Knd
Working Table Size
4000*1800mm
Left and Right Stroke (X)
4000mm
Back and Forth Stroke (Y)
2200mm
up and Down Stroke (Z)
1000mm
Distance From Spindle End to Worktable S
0-1400mm
Spindle Taper
Bt50
Specification
Customized
Trademark
YOGIE
Origin
China, Henan

Product Description

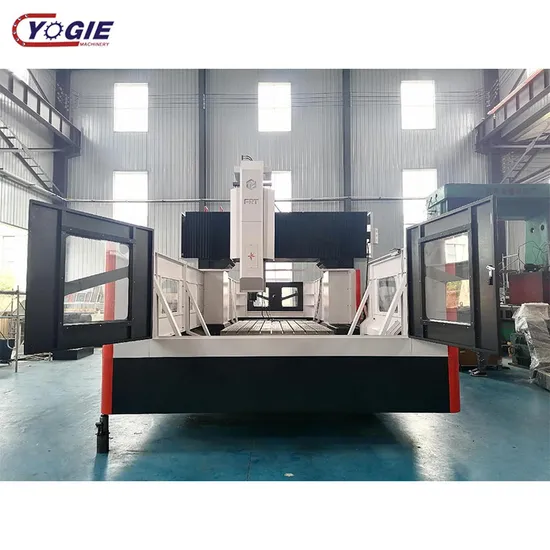

Henan Front fixed beam and column CNC gantry boring and miling machine inherits the advantages of traditional gantry machine tools such as strong rigidity, symmetrical structure, andstrong stablity, and adopts innowative design concepis.All products adopt PROrE three-dimensionalc design. The main structure ofthe machine toolis unifom Using finite element analvsis,By opimizing the reinforcement structure and disitributing the quality reasonably, the whole machine has heavy load,strong rigidity, good dynamic characteristics, meets the requirements ofhigh-power and high-precision cuiting, and itis suitable for the processing ofsuper large and ultra heavy parts. Product Description
Product Parameters
Technical specification FRT-SP1514 FRT-SP2218 FRT-SP3018 FRT-SP4025 FRT-SP6035
Travel
XYZ axis travel (worklable left and right movement) mm 1500/1600/700 2200/2000/1000 3000/2000/1000 4000/2700/1000 6000/3700/1200
Distance of spindle nose andworking table surface mm 200-900 200-1200 200-1200 300-1300 400-1600
Gantry width mm 1400 1800 1800 2500 3500
Guide rail Two linear guide rail,one hardened rail
Work Table
Table size mm 1500X1200 2200X1500 3000X1500 4000X2000 6000X2500
The maximum load capacity of the worktable T 3 5 8 15 20
Spindle
The spindle taper (model, sleeve diameter) BT50
Thespindle motor power kw 11 18 22 26 30
Spindle speed rpm 6000
Accuracy
Precision of position mm 0.01/1000
Accuracy of repeated position mm ±0.01
Size
Netweight(approx.) T 15 20 30 40 75

Company Profile

FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
