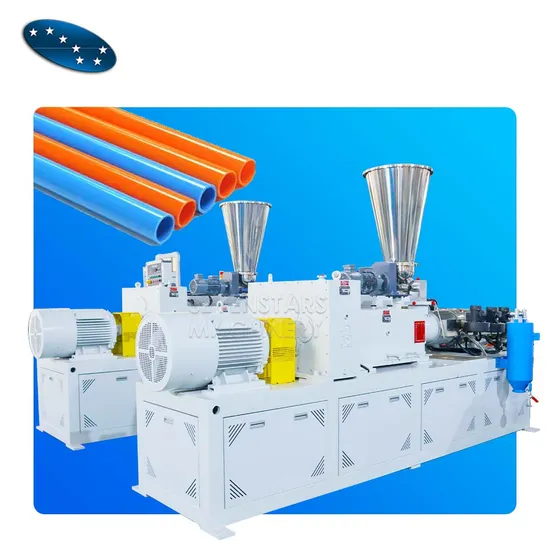

PVC Water Pipe Drain Pipe Electrical Conduit Pipe Making Machine

Product Description

pvc pipe machine with price/pvc pipe machine/pvc electric conduit pipe making machine
General description
Advantages:
The series extruders with appropriate die-mould and auxiliary machine can directly convert thermoplastic especial PVC powder into pipe,plate sheet,film and profile,and also provide function of modifying and pelleting.The extruders are derived by A.C motor with a thruster to steepless regulate.It is also equipped with the over-load protection and stoppage alarming system .The screw's core and the outside of barrel is cooled by circulation of oil,includes vacuum venting and forced feeding.
Application:
Diameter 16mm-800mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc.

PVC pipe extrusion line Include:
Spring feeder→Conical twin-screw extruder→mould→vacuum calibration tank→ haul off→cutter→ stake etc.
The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.
Production Flow

Detailed Images Main Techinacal Parameter:

Item	SJSZ-45	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Diameter of screw(mm)	45/90	51/105	55/113	65/132	80/156	92/188
Number of screw(mm)	2	2	2	2	2	2
Direction of screws	Screw rotation direction	/	/	/	/	/
Screw rotation speed(rpm)	1-45	1-45	40	1-35	1-37	1-33
Effective length of screw(mm)	985	1070	1200	1440	1800	2500
Power of Main engine(kw)	15	18.5	22/30	37	55	90
Barrel heating power(kw)	12	18	18	24	36	86.8
Production capacity(kg/h)	120	80-150	150-180	250-300	320-400	600-800
Center height(mm)	1000	1000	1000	1000	1000	1200
Net weight(kg)	2800	3200	3500	4000	5000	8000
Dimensions(mm)(L*W*H*)	3300*1200*2100	3600*1100*2100	3600*1100*2100	4235*1520*2450	4750*1550*2460	6725*1550*2841

Finished Products
Product Uses

Company information Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. it is an enterprise specialized in producing plastic machinery.it lies to the south of the middle and lower reches of Yangtze River.It is located in the National civilization and hygienic city-zhangjiagang , Surrounded by the economic belt of Suzhou,Wuxi,Changzhou,Nanjing and Shanghai.Both land and river transports are rather convenient.We sell our products to Europe middle,Africa and Asia,etc country and region.Our products enjoy a high reputation home and abroad.

Our service 1.Upon request Supplier will dispatch engineers to install the machines and do commissioning together with customer's workers.
2.Meanwhile, engineers will teach how to operation, maintain for buyer's engineers, worker on site.
3.We also offer long term technical guidance.
FAQ 1.How about the quality about this machine?
Answer: yes,my friend,please rest assured,we have nearly 10 years experience for this machine.quality is no problem.

2.How about the output about this machine?is the data real?
Answer: my friend,we have tested that machine many times,then get this data,it is real and can meet your need.

3.Wether you deliver in time?
Answer: sure,once we receive your payment, then delivery immediately.

4.What about your after service?
Answer: we can send our engineers to you factory and offer long term technical guidance.
