Top Quality Factory Price High Load Robot for Insulating Glass Vacuum Lifter

Product Description

Product Description

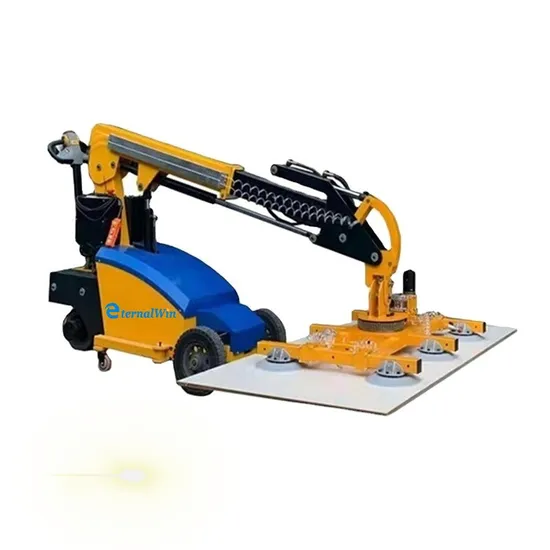

The overall structure of Eternalwin vacuum lifter is compact, easy to operate and maintain, and can easily enter elevators and small trucks for convenient transportation. The surface of the machine is painted with high corrosion resistance. Eternalwin glass lifter with electric suction and deflation, it only takes 4-6 seconds to suck a piece of glass, efficient and convenient, electric flip 180°, manual rotation 360°, optional electric rotation, electric side rotation, wireless remote control. Imported silicone suction cups protect the glass surface from scratches. And each suction cup is equipped with an independent air valve. Eternalwin glass lift equipments have two independent suction systems, when one system has a problem, the other system can ensure that the suction cup continues to work without delaying the construction period.
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.

Glass Installation Robot	EW-300	EW-350	EW-400	EW-500	EW-600	EW-800
Rated Load Capacity(kg)	300KG	350KG	400KG	500KG	600KG	800KG
Manual Rotating	360°	360°	360°	360°	360°	360°
Lifting Height(mm)	3500	3500	3500	3500	3500	3500
Manipulation	Walkle Type
Battery(V/A)	2*12/80	2*12/90	2*12/100	2*12/120	2*12/120	2*12/210
Charger(V/A)	24/12	24/12	24/15	24/18	24/18	AC110-220V
Drive motor(V/W)	24/1200	24/1200	24/1200	24/1200	24/1200	AC24/2200
Lift motor(V/W)	24/2000	24/2000	24/2000	24/2000	24/2000	24/2200
Overall Width(mm)	810	810	810	810	810	850
Overall Length(mm)	2660	2660	2660	2800	2800	3045
Driving Wheel Dimension(mm)	250*80	250*80	250*80	300*100	300*100	450*200
Pads Diameter(mm)	300	300	300	300	300	400
Glass Size(mm)	3660*2440

Detailed Photos
Related products
Packaging & Shipping
Customer Visiting
Company Profile
Certifications


FAQ
1. What after-sale service do you provide?
We have professional sales team and technical team for all of our customers . We offer 24-hour service.
2. What terms of payment do you support?
We accept kinds of payment ,such as Western Union, Paypal, L/C, T/T ETC,or other payment for your convenient .
3. How to delivery the goods?
We usually ship goods by sea,which is cheaper than by air,or depends on your specific requirement.
4. What is your warranty about machine?
We offer one year guarantee generally , also our engineering team available for oversea service with crane installation, inspection and commissioning.
5. What is your delivery terms ?
We usually use FOB,also use other terms like EXW, CIF, CFR ...for your convenient .
6.Why should I choose your products?
We can provide high quality products and perfect price for you.
