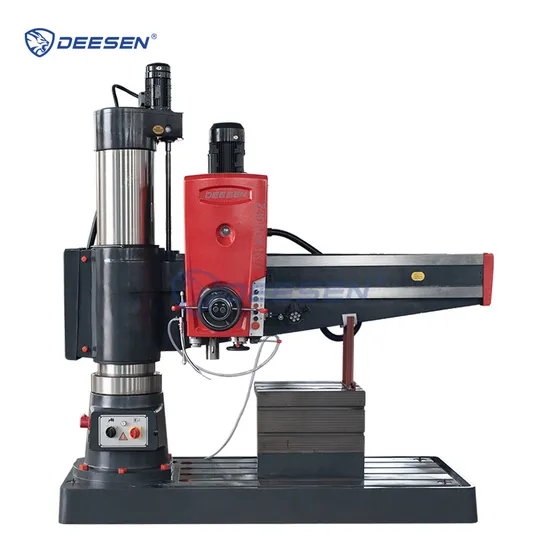

Z3050*16 Simple Operation High Efficiency Custom Multi Spindle Drilling Machine with CE Marked
| US$9,000.00-9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050X16/1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight
3500kg
Max. Drilling Diameter
50mm
Spindle Speed Range
25-2000rpm
Distance Spindle Nose and Work Surface O
350-1600mm
Spindle Taper
Mt5
Rocker Arm Lifting Speed
0.04~3.20mm/R
Spindle Travel
315mm
Spindle Feed Steps
4
Spindle Speed Steps
12
Spindle Feed Range
0.04~3.20mm/R
Main Motor Power
4kw
Table Size
500X630mm
Transport Package
Wooden Case
Specification
2500*1070*2840mm
Trademark
DEESEN
Origin
China
HS Code
8459619000
Production Capacity
300/Month
Packaging & Delivery
Package Size
270.00cm * 130.00cm * 300.00cm
Package Gross Weight
4000.000kg
Product Description
Z3050*16 Simple operation High efficiency custom Multi Spindle Drilling Machine with CE markedProduct Description
Specifications
| SPECIFICATIONS | Units | Z3050xl6/I |
| Max. drilling dia. | mm | 50 |
| Distance between spindle nose and table surface | mm | 320-1200 |
| Distance from spindle axis to column surface | mm | 350-1600 |
| Spindle travel | mm | 315 |
| Spindle taper | - | MT5 |
| Spindle speed range | rpm | 25-2000 |
| Spindle speed steps | - | 12 |
| Spindle feed range | mm/r | 0.1-0.4 |
| Spindle feed steps | - | 4 |
| Main motor power | kw | 4 |
| Lifting motor power | kw | 1.5 |
| Machine weight | kg | 3500 |
| Overall dimension | mm | 2500*1070*2840 |
Detailed Photos
CENTRALIZED MECHANICAL
SHIFT
Concentrated mechanicalspeedchange.12 steps from 40-1896r/mm.convenient and quick
Radial Arm Clamping
Radial arm mechanical clampingHigh stability.
Column Clamping
Vetical column mechanical clampingHigh stability and stronger
Table
High Audio quenching table.
Enhanced accuracy & rigidity.
Electrical BoX
High quality imported electrical box.High performance &long uselife
Company Profile
FAQ
| 1:How can I choose the most suitable machines ? |
| A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . |
| You can also send us the products drawing ,we will choose the most suitable machines for you . |
| 2: What's your main products of your company? |
| A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . |
| 3: Where is our factory located? How can I visit there? |
| A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. |
| 4. What is your trade terms? |
| A : FOB, CFR and CIF all acceptable. |
| 5: What's the Payment Terms ? |
| A : T/T ,30% initial payment when order ,70% balance payment before shipment ; |
| Irrevocable LC at sight . |
| 6: What's the MOQ? |
| A: 1 set .(Only some low cost machines will be more than 1 set ) |
