PV Module Backplane Scratch Resistance Testing Machine
| US$2,941.18-3,382.35 | 1 set (MOQ) |
Basic Info.
Model NO.
HTPV-02O
Standard
IEC 61215
Warranty
1 Year
Mobility
Portable
Calibrating Method
Standard Hardness Test Blocks
Rated Voltage
220V
Support Language
English
Customized
Customized
Material
Aluminum Alloy
Function
Main Use to Test Component Resistance Scratch Test
Applications
PV Module
Standards
IEC61215
Certificate
ISO SGS
Delivery
30 Work Days
Warranty Time
One Year
Product Name
PV Module Backplane Scratch Resistance Testing Mac
The Mass of Test Fixtural
8.9n
Test Fixture Speed
150mm/S
Transport Package
Wooden Case
Specification
IEC 61215 etc
Trademark
HOTOTECH
Origin
Dongguan
HS Code
9013809000
Production Capacity
100 Sets Per Month
Product Description
PV Module Backplane Scratch Resistance Testing MachineStandard
According to IEC61730-2 and UL1703
Purpose
The instrument used to polymer material as before behind surface's component is whether bear the electric shock danger on the install and maintain process normal operate
Parameter
1. The operate able adopt aluminum alloy material, table size: 1.4m× 0.65m.
2. The operate table include tracking pulley, tracking head slide displacement is very convenience

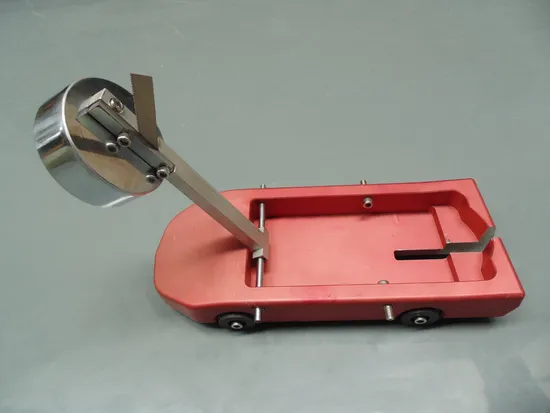

3. Small cart parts:
1)adopt carbon steel saw blade
2)Guarantee 0.64m± 0.05mm thick require, and satisfy 0.115± 0.025mm blade radius require.
3)distance and angle can adjust.
4)on the saw blade include the weights box.
5)According the IEC617302 standard require adjust weights, guarantee the test point suffer gravity 8.9N± 0.5N
4. Adopt Motor constant speed tracing, the speed continue adjust, tracking directing can adjust
5. Can guarantee cutting car to(150± 30)mm/s speed pull over component
The important parameter
| Standard | IEC61730-2 and UL1703 |
| the operate table size | 1.4m×0.65m |
| samll cart parts materials | carbon steel saw blade |
| The mass of test fixture | 8.9N±0.5N |
| The fixture speed | 150±30mm/s |
Testing machine images show
