IP66 IP67 Waterproof 150W Stainless Steel Outdoor LED Spotlights 1500W 1800m IP56 Marine Boat HID Xenon Searchlight Equivalent Marine Search Lights for Vessel

Product Description

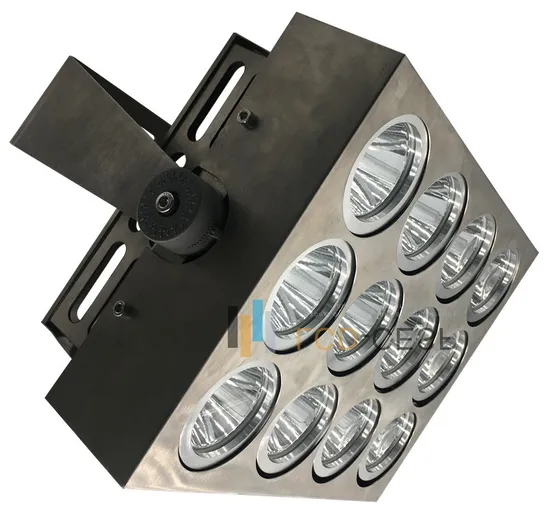

Billhead Shark--LCD-CG-S-250-2/3 Harsh Location LED Marine searching Light
Product Description
LCD Billhead Shark LED searchlight has an excellent optic beam 2-3deg, with mostly laser light rays and long range of up to 3000 meters. LCD searchlights are suitable for all ocean-going and inland-waterway vessels - typical examples being merchant vessels, along with Defense, Costal Watch, Search & Rescue,Navy, Customs and Firefighting. It is a perfect solution for fishing boat, vessel and Navy, etc. Marine applications where high visibility at a clear light pot is needed, such as searching, rescuing, lighting floating objects at sea, lighting submerged rock, lighting suspicious vessel and for Suez Canal or long narrow channel, night navigation, searchlight for sea surface obstacles etc. With using only high-quality LEDs driver etc materials, it might be the best one of performance LED searching light in the world.

Application
The new LCD Billhead Shark LED searchlight range has been developed to offer an Efficiently and Environmentally Friendly alternative to traditional lamp sources.
Using the highest grade of the world class Osram LEDs, makes use of the high current capability of the latest chip generation in a thermal optimized package. The LED is characterized by a high luminance from up to 200 cd/mm² and high luminous flux. Therefore this LED is ideally suited as a powerful light source for high-definition searching light. this range offers a high-power output with low power consumption. Using a series of precision-made Aluminum lenses to optimize and collimate the light output, to achieve a greater range and output. The high-power LED Chip has 100,000 hours life.
As with all LCD products, the construction is robust and of the highest quality with stainless steel #316 housing and LCD patented high tech. new LEDs cooling system. To dissipate the heat generated by the high-power LED, there has been a great focus on thermal management to optimize the chip output.
LCD Searchlights have developed and improved all remote-controlled searchlights across the range still further by adding full variable speed, a new modern and sleek joystick control panel, using membrane and LED technology, offering Bus Control, auto home position setting, all with Optional Controls available on request. The 234w LED gives illumination characteristics in excess of a 3kw Halogen.
Features
• Excellent optics beam lenses 2-3° for long range illumination up to 3000 meter
• Toughened super clear Optic white front glass.
• Power saving with low power consumption compared with traditional halogen/HID/MH 500W-3000W searchlights, it just consumes only 40W to 250W.
• Input voltage: AC100-277V or 18-32VDC suitable for different Marine applications.
• >50,000 lamp life hours
• Anti- corrosion resistant constructed from marine grade stainless-steel housing and stainless-steel mounting hardware.
• Without UV-resistant problem toughened and precision made Aluminum lenses.
• Powder coated and stove enamel paint finish.
• High protection level up to IP67 and suitable for marine conditions.
• Heater fitted in gearbox & barrel.
• Operational temp -40°-+55°.
• Colour Temp options 6000-6500k.
• Sealing - IP67 Gearbox, IP67 Searchlight.
• Searchlight weight 17kgs,
• High impact resistance IK09.
• High vibration resistance, meeting 4-5G standards.
• Low profile, lightweight, anti 18-level typhoon rate.
• Warranty: 5 years for marine applications.

Optics Information	Mounting options:
Typical photometrical features LED colour temperature: 3000K (Warm White) 4000K (Neutral White) 6500-8000K (Cool White) Colour rendering index (CRI): >80 (Warm White) >75 (Neutral White) >70 (Cool White) Upward Light Output Ratio (ULOR): 0%	Adjustable stirrup & Bracket Weight: 17kg Recommended a long range distance lighting: 2500-3000 meters Ambient operating temperature: -40°C to +55°C Storage temperature: up to 85°C
Available photometric distributions: Asymmetric Narrow oval 10x45 Asymmetric Wide oval 10x60 Asymmetric Extra Wide Flood 10x90 Asymmetric Forward Throw Narrow Symmetrical Wide Flood 60 Symmetrical Narrow Spot 2-3 Symmetrical Wide 90 Symmetrial Forward 5-10 Rated initial chromaticity co-ordinate values: 4000K - CIE(x= 0.38, y= 0.38) 5SDCM 6500K - CIE(x= 0.34, y= 0.35) 5SDCM

ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz or 18-32VDC
• Electrical Class I EU
• Power factor >0.97
• Surge protection options (kV): 3KV - 4KV (6KV 10KV on requests)
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI, Triac

Power	50W	80W	150W	200W	250W
Luminous Flux	7,130	11,408	21,389	28,518	35,648
Color Temperature	5000-8000 Kelvin	5000-8000 Kelvin	5000-8000 Kelvin	5000-8000 Kelvin	5000-8000 Kelvin
Beam angle	3°/3°	3°/3°	3°/3°	3°/3°	3°/3°
Range @ >1 Lux	1000 m @ 3°	1250 m @ 3°	1500 m @ 3°	2500 m @ 3°	3057m @ 3°
Fixture finished	white	White	White	White	White
LEDs chip brand	OSRAM / Cree	OSRAM / Cree	OSRAM / Cree	OSRAM / Cree	OSRAM / Cree
IP rate	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67	IP66/IP67
Operating Temperature	-40°-+55°
Life span	>70,000 hours
Voltage	100-277VAC, 50/60Hz or 18-32VDC
Pan/Tilt Range	pending : Control for MC & EC Types: Pan 0°- 350° , Tilt -30°- +30°
Warranty	5 years warranty for maritime applications
Note: Illumination distances are difficult to predict and deteriorate rapidly when haze, smoke, fog or smog is present.

Product Construction & Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request
Product DIMENSIONS

Item Name	AxBxC (MM)
LCD-CG-S-50-LNXXX IP67 LED searchlight	389.2x296.7x57
LCD-CG-S-80-LNXXX IP67 LED searchlight	436.6x345.7x57
LCD-CG-S-150-LNXXX IP67 LED searchlight	436.6x345.7x57
LCD-CG-S-200-LNXXX IP67 LED searchlight	582x385x60
LCD-CG-S-250-LNXXX IP67 LED searchlight	582x385x60

Weight (kg ):

Item Name	Weight (KG)
LCD-CG-S-50-LNXXX IP67 LED searchlight	3.5KG
LCD-CG-S-80-LNXXX IP67 LED searchlight	6.0KG
LCD-CG-S-150-LNXXX IP67 LED searchlight	9.0KG
LCD-CG-S-200-LNXXX IP67 LED searchlight	13KG
LCD-CG-S-250-LNXXX IP67 LED searchlight	17KG

Product dimension

Light distribution curve About 8 style differents optic beam


Model No. Power(W) Lumens(lm) Color temperature Input Voltage Current Weight(kg) Dimensions (mm)
LCD-FA-083 80W 11200 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-FA-103 100W 14000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-FA-153 153W 21000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 4.0Kg 200x200x147
LCD-FA-203 200W 28000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-FA-253 253W 35000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-FA-303 300W 42000 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 7.5Kg 300x300x165
LCD-FA-323 320W 44800 3000k / 4000k / 6500K 85 ~ 265VAC 0.12A 10.5Kg 400x400x169
SUITABLE FOR: The FA series is a new series of waterproof LED flood lights made in the high quality factory - ideal for saving energy while illuminating stairs, parking
garages, driveways, tunnels, and virtually any building exterior and Marine and Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or where wind, water, snow or high ambient can be expected. They can be used in locations made harsh by the presence of weather.LCD-FA Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.
Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 30 C to + 50 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T5
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with Carbon steel or high quality stainless steel#316
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
