Poultry2-3.5mm Breeding Cage Welded Wire Mesh Welding Machine

Product Description

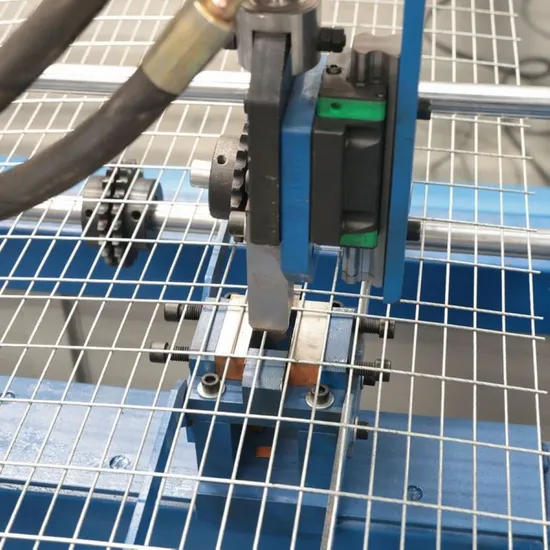

Poultry2-3.5mm breeding cage welded wire mesh welding machine Detailed Photos

Product Description

chicken cage wire mesh making machine
Mesh width	1200/1600mm	cross wire space	≥ 25 mm
Number of electrodes	16/32	Cross wire feeding	Precut wire with 400mm
transformer	Main 125KVA *3/4	tolerance of diagonal line	±2 mm(when 2 m length )
Wire diameter	2-3.5 mm	Welding material	Low carbon steel wire
Welding speed	60-80 p cs/min	Finished mesh	Panel sheet
Line wire feeding	Coil	Line wire space	50-200mm

Product Parameters

Function features ------------------------Chicken breeding cage mesh welding machine
1.This cage wire mesh welding machine is automatic welded wire mesh machine used for poultry cage wire 2~3.0mm.
2.The cage wire mesh welding machine adapts electrical synchronous technique.
3.The welding time and welding of cage wire mesh welding machine is controlled by integrated electric circuit.
4.The cage wire mesh welding machine welds the line and cross wires be solid mesh in the principle of multi-electrode resistance welding.
5.The cage wire mesh welding machine consists of welded equipment, line and cross wires feeding device, mesh stepping system and electrical control system.
6.The material of cage wire mesh welding machine can be low carbon steel wire or galvanized wire.
7.The line wires of cage wire mesh welding machine are in coil and can be straightened by straightening wheel on the front of the machine and then be put into the line wire entrance.Cross wires of cage wire mesh welding machine are pre-straight and cut wires.
8.The mesh aperture size of bird cage wire mesh welding machine can be adjusted. The line wire space can be adjusted through adjusting the electrode space. The cross wires space can be adjusted by PLC.
9.The welding speed of cage wire mesh welding machine can be 60~100times/min, the work speed mainly depends on the wire material,mesh aperture, choice of welding parameter, proficiency of workers,etc
10. The finished product of cage wire mesh welding machine can be in roll or in panel. Installation Instructions

function features of Automatic Chicken Cage Welding Machinery

The breeding net welding machine can produce poultry net pieces, and can be made into chicken cages, etcin addition to producing cages, there are also machines for producing cage doors, including upward and horizontal cage doors, and
machines for producing egg hen cage spacer nets, which make breeding more convenient.
Packaging & Shipping
1.The spare parts and control cabinet will be loaded in wooden box.
2.The main machine is plastic bags packing.
3.Special packing is available as customer's request.
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

Our Advantages

Pre-sales services
Inquiry and consulting support.
Sample testing support.
View our factory.


After-sales services
Training how to install,operate and maintain the machine.
Engineers available to service machinery overseas.
One year guarantee for the whole machine.
Operation manual is available.
