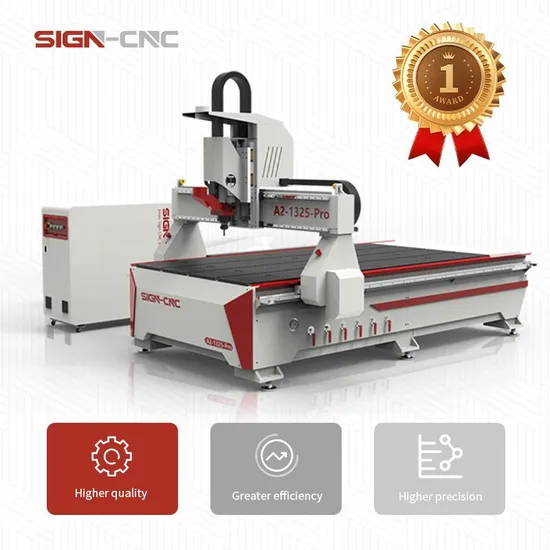

1325/1530/2030/2040 Woodworking Engraving Machine A2-1325-PRO High Quality Sign CNC Router with Atc 9kw Spindle for Cutting

Product Description

Product Description
1325/1530/2030/2040 Woodworking engraving machine A2-1325-Pro High quality sign cnc router with atc 9kw spindle for cutting
Detailed Photos

* 25mm square guide rails * DSP control system * Heavy duty machine bed and large steel gantry, stable and high precision * 9kw air cooling spindle *Aluminum profile T-slot table with PVC protection * Y-axis dual servo motor drive, provide a strong impetus to ensure stable work * Perfect oil lubrication system makes maintenance much easier * Tool sensor to adjust the distance from materials to cutter automatically. * Breakpoint memory, can continue to work after power off & breaking knife. * And electric limit switch on all axis, make sure machine running well. Product Parameters
PRODUCT SPECIFICATIONS

Item	Data
Model	A2-1325-Pro
X, Y Working size	1300*2500mm
Z feed Height	300mm
Table Surface	Aluminum profile T-slot table with PVC protection
X, Y Structure	Rack and Pinion, 25mm Linear Square Guide Rail
Z Structure	25mm Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 2.0Kw
Max. Rapid Travel Rate	35000mm/min
Max. Working Speed	20000mm/min
Spindle Power	HQD ATC 9kw air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	Servo motor and driver with reducer
Working Voltage	AC380V 50/60Hz
Command Language	G code
Control System	DSP A11 /B11
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Artcam
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%
Optional Parts	Rotary
Warranty	Two years

Application and sample
Furniture industry: Solid wood furniture, solid wood door, wooden cabinet door, Paint-free door, composite gate cabinet, Board type furniture, office furniture, table and chair, door and window and Screen engraving.
Wooden products processing: Wooden Speakers, wooden Clock, computer desk, wardrobe, Sports Equipment
Musical instrument: 3D surface engraving and shape cutting for violin
Artwork line: Photo frame, jewelry box
Electrical industry: PVB circuit board, insulation material, LED display screen
Packaging & Shipping
Package
Certifications

Company Profile

40%-50% clients also like products as following
Linear ATC cnc router ATC 4 axis cnc router Automatic tool change machine, tools 8-12 pc according your demand. ATC type and spindle rotate 180 degree,
carving for side hols like Keyhole, hinge hole and so on.
FAQ
Q1:What about your after-sales service A1: Two years warranty for machine and 24 hours technical support by call, email, skype, whatsapp, wechat and so on. If you have any question about machine and use, can contact with us, we will give you a solution or send to you video for how to do.
