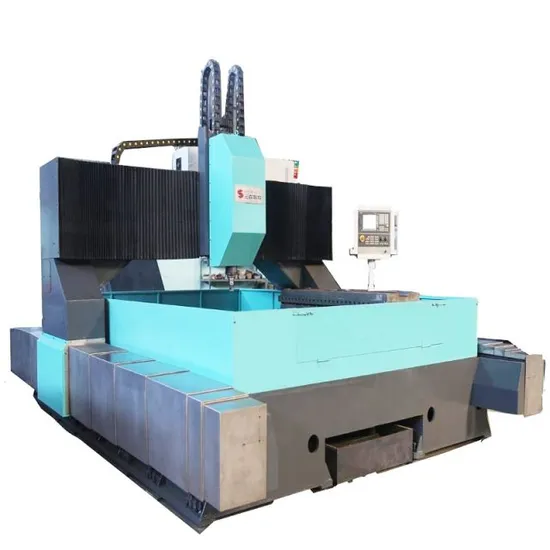

High Configuration CNC Gantry Drilling Milling Tapping Machine for Flange

Product Description

High Configuration CNC Gantry Drilling Milling Tapping Machine for Flange

Product Description
The PHD series is a gantry moving CNC high-speed drilling and milling machine, mainly used for drilling, shaving, chamfering, grooves inside holes and milling of flanges, heat exchangers, tubeplates, rotary supports and other workpieces. It can be used for internal cold high-speed drilling with hard alloy drill bit or external cold drilling with high speed steel twist drill bit. Drilling depth of 10D (10x diameter) can be achieved with special crown drill bit. The machining process is NC and easy to operate. It can realize automatic, high precision and many kinds of mass production.
CONSISTS OF THE BELOW ITEMS
Machine Body
Working table
Moving Gantry
Vertical sliding pillow type power head
Hydraulic system
Pneumatic system
Cooling system
Centralized lubrication system
Electrical control system
Automatic chip removal system
THE PRODUCT STRUCTURE FEATURES
This machine is mainly composed of bed,gantry,drilling and milling power head,electric control system,centralized lubrication system,cooling system and chips removal system etc.
1.Double side lead screw synchronous driving system,stable performance,flexible movement,accurate positioning.
2. Adopting slide head drilling and milling power head,it can realize the automatic conversion of fast forward,drillng and quick return,and has the function of automatic chip breaking.
3.Adopt Taiwan BT40 high speed internal cooling precision spindle,can adopt hard alloy internal cold drill bit,processing efficiency is very high.
4.Equipped with pneumatic knife cylinder automatic knife replacement,optional tool magazine.5.SIEMENS 808D CNC + servo motor control,can directly transfer Auto CAD drawings to general processing program. 6.Automatic chip removal,cooling liquid recycling.
Product Parameters

Model		PHD1010	PHD1616	PHD2016	PHD2020	PHD3016
Processing Range	L×W (mm)	1000x1000	1600×1600	2000×1600	2000×2000	3000X1600
	Thicknes(mm)	15-100
Sliding Feeding Spindle	Number of spindle	1
	Spindle model	BT40/BT50
	Spindlespeed(r/min)	30-4500
	Feed stroke(mm)	260
	Tapping diameter(mm)	M20
Motor power (KW)	Spindle servo motor	7.5 /11
	X	2×2.3
	Y	2.3
	Z	2.3
positioning accuracy(mm)		0.1
Repeatable positioning accuracy(mm)		0.08
Control mode		SIEMENS 808D CNC system /PLC+ upper computer

Detailed Photos
WORKSHOP
WORKPIECE
HOT SELLING DRILLING MACHINE
