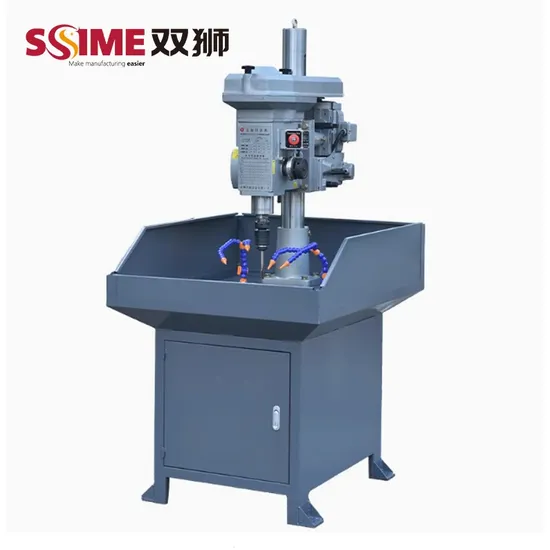

6532 Fully Automatic Gear Tapping Machine Worktable with Multiple Shaft Heads

Product Description

Product Description

Features
Solid Pillar Is Adopted,Stress Is Eliminated By Tempering Treatment, Hard Chrome Is Plated On The Surface,Friction Resistant And Rust Resistant

The main technical parameters
Speciflation		GT3-231
Table Dimension		420*375mm
Dimension		1030(L)×700(W)×1370(H)
The head of the move from up and down		300mm
Spindle Diameter		85mm
Spindle Taper		MT3
Distance from spindle to table		450mm
spindle travel		85mm
spindle speed		280/150/80
Motor power		3PH 6P 2.2KW (1/2HP)
tapping capacity		M10-M32
weight		380KG

Hot Product
Company Information
FAQ
1.Can the drilling machine do tapping work?
No,the drilling machine only can holes.
2. Is the spacing of the machine adjustable?
yes,it can adjust to different usage.
3.is the cutting tool easy to break?
It is not easy break if you operate nomally.
4:If we need the non-standard machine,what should we offer you?
The flowing information you need to offer us.
1:the drawing of you product.
2:the samples of you product.
3:the product's height,width and thickness.
4:the max and min.range of the holes.
5:the material's thickness,width,how many drilling and tapping holes for the products.
5:can the non-standard machines both do tapping and drilling work?
YES,it can.
6.Payment term
After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
7. Arrange production
Mass production is managed upon getting deposit . Usually, CNC milling machine is finished within 20 days, automatic drilling machine and automatic tapping machine within 15 days.
8. Package
we recommend you to choose wooden box packing to avoid damage during the transportation.
9. Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.
10.Warranty time
One year warranty. We can send you the machines' components for free in the first one year if it is not be damaged on purpose. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.
We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals.
12 months warranty begins from the day when the machine arrives. If it can't work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
11.OEM Service
We accept purchase orders with customers' brand or trade mark.
