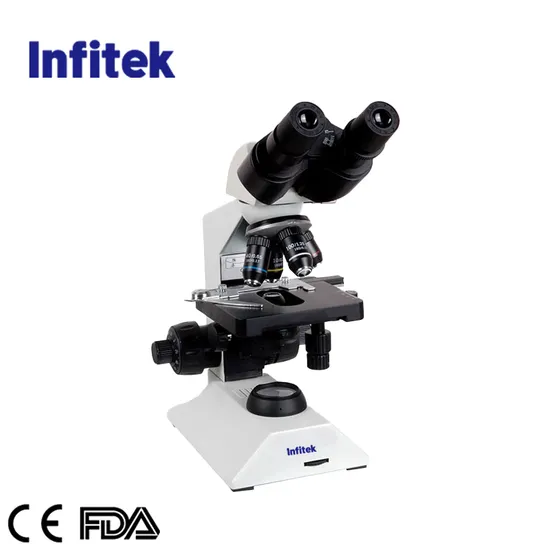

Infitek Binocular Optical Biological Microscope (Siedentopf)

Product Description

Infitek LCD display Binocular Optical Biological Microscope (Siedentopf) Features This instrument complies with the ergonomic principle, with superior optical performance, long operation time and low observation fatigue. It is suitable for medical institutions at all levels to do research demonstration, routine laboratory examinations, biology, bacteriology, clinical trials and teaching.
LCD display system
7-inch high-definition imaging equipment, used in combination with a microscope, with the observed effect of the eye at each multiple, display mode: 16:9 / 4:3; screen resolution: 1024 * 600.
The digital display storage system
10-inch display screen, With 8.0M HDMI camera, the output resolution of HDMI is 720P@ 60fps; the photo resolution is 3840 * 2160; remote control is adopted.
Specification

Model	MSC-B102(Siedentopf)
Viewing Head	Seidentopf Binocular Head lnclined at 45°interpupillary (55-75mm)
Eyepiece	Wide Field eyepiece WF10X18mm
Nosepiece	Quadruple Nosepiece
Objective	Achromatic Objective 4X,10X,40X,100X
Stage	Double Layers Mechanical Stage 115X125mm/ 70X30mm
Condense	Abbe NA1.25 with Iris Diaphragm & Filter
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm,, Fine Stroke 0.2mm per Rotation, Moving Range 20mm
Illumination	LED Illumination, Brightness Adjustable
	Halogen Lamp 100V-240V/ 6V20W
	Plan-concave Mirror
Package	Styrofoam
	Carton
Package Dimension (W*D*H) (mm)	380*280*470
G.W.(kg)	5.5

Packaging & Shipping
Certifications
Company Profile
FAQ Q: How about quality of the goods?
A:
All the running products comply with CE standards. Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch. Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A: Timely reply to pre-sales enquiries Real-time update of manufacturing and shipment status Contracted third-party maintenance company in over 60 countries Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
