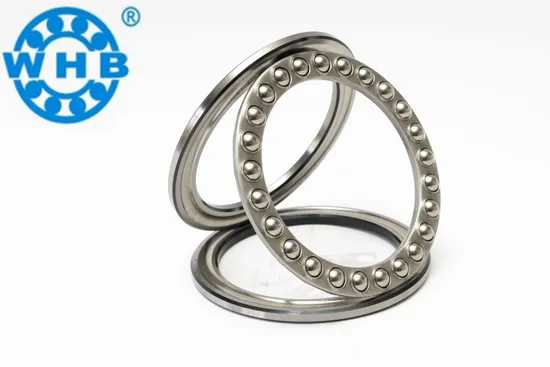

Whb China High Precision Thrust Ball Bearings 52212 51213 53213 53213 52213 51214 53214 52214 51215 53215u 53215 52215 51216 53216 52216 51217 53217 52217

Product Description

Company introduction:
WHB Bearing specializes in the production of ball bearing, roller bearing, pillow block bearing and so on.
As a leading manufacturer of bearing, I'm pleased to inform you that we have been working with many big companies in Southeast Asia and South America. We are in a good position not only to supply you high quality bearing, but also the excellent after sales service.
If you are interested in our bearing, please do not hesitate to send us the inquiry,hope you can give the chance to start the cooperation
CE Certificate:
ISO Certificate:

Packing: A. plastic box+outer carton+pallets
B. plastic bag+ single box+carton+pallet
C. plastic bag+ single box+middle box+carton+pallet
D. Of course we will also be based on your needs
Parameters of Bearing:

Product name	51100-51320 10-170mm Planar Thrust Bearing 51312 51313 51314 51315 51315 51316 51317 51318 51320 51100 thrust Bearing
Model :	51101 51102 51103 51104 51105 51106 51107 51108 51109 51110 51111 51112 51113 51114 51115 51116 51117 51118 51120 51122 51200 51203 51204 51205 51206 51207 51207 51208 51209 51210 51211 51212 51213 51214 51215 51216 51217 51218 51220 51222 51224 51226 51228 51305 51306 51307 51308 51309 51310 51311 51312 51313 51314 51315 51315 51316 51317 51318 51320 51100
Bearing Material:	100% Chrome Steel/GCR-15
Cage:	Steel Cage
Feature:	Long Life
Precision Grade	P0 P6 P5 P4 P2 are all available
Advantage	Well-equipped technology,perfect detection means,high quality and reasonable price
Service	OEM Customized Services
Application	Machinery chair
Design	We can also manufacture products according to customers samples or pictures.

Bearing model	d(mm)	D(mm)	T(mm)	Load Rating(N)		Weight (Kg)
				Dynamic	Static
51100	10	24	9	10	14	0.02
51101	12	26	9	10.3	15.4	0.022
51102	15	28	9	10.5	16.8	0.024
51103	17	30	9	10.8	18.2	0.028
51104	20	35	10	14.2	24.7	0.04
51105	25	42	11	19.5	37.2	0.059
51106	30	47	11	20.4	42.2	0.068
51107	35	52	12	20.4	44.7	0.09
51108	40	60	13	26.9	62.8	0.12
51109	45	65	14	27.8	69.1	0.15
51110	50	70	14	28.8	75.4	0.16
51111	55	78	16	-	-	0.24
51112	60	85	17	41.4	113	0.29
51113	65	90	17	41.7	117	0.34
51114	70	95	18	43	127	0.36
51115	75	100	19	42.3	127	0.42
51116	80	105	19	44.6	141	0.43
51117	85	110	19	45.9	150	0.46
51118	90	120	22	59.7	190	0.68
51120	100	135	25	85	268	0.99
51122	110	145	25	87.1	288	1.08
51124	120	155	25	89	308	1.16
51126	130	170	30	104	352	1.87
51128	140	180	31	107	377	2.2
51136	180	225	34	135	528	3.39
51138	190	240	37	170	657	3.95
51140H	200	250	37	-	-	4.2
51144H	220	270	37	-	-	4.56
51148	240	300	45	241	1020	7.38
51152H	260	320	45	-	-	8.1
51156H	280	350	53	-	-	12.2
51160H	300	380	62	-	-	17.5
51164	320	400	63	379	1760	19
51168	340	420	64	387	1860	20.5

A Wide Range Applications Of Bearing:
• agriculture and forestry equipment
• automotive and industrial gearboxes
• automotive and truck electric components, such as alternators
• electric motors
• fluid machinery
• material handling
• power tools and household appliances
• textile machinery
• two wheeler.
Our Bearing Advantage: 1.Free Sample bearing
2.ISO Standard
3.CE Quanlity certificate
4.Bearing Small order accepted
5.In Stock bearing
6.OEM bearing service
7.Professional:24 years manufacture bearing
8.Customized bearing, Customer's bearing drawing or samples accepted
9.Competitive price bearing
FAQ: 1. How do I start purchase?
You can email or contact with our online salesman, then get offer and shipping cost for our order. After your confirm, our
salesman will send u Invoice. After payment done, we will ship goods on time.
2. Do you have stock for all item?
Yes, we have sufficient stock and do fast delivery.
3. What about the delivery?
By express(DHL, UPS, FEDEX, TNT, EMS) to your door; By sea to your nearest port; By air to your nearest airport.
4. What about the payment?
By TT, L/C,Western Union or paypal.
5. What about the lead time?
For stock goods, 5-7 days after payment.
