High Capacity Truck Unloader 1400mm to 1800mm Belt Width for Cement and Sand

Product Description

Company Profile
Zoomry, a professional belt conveyor manufacturer and EPC contractor founded in 2002, specializes in providing bulk material handling solutions that help customers lower production costs, increase productivity and lessen environmental impacts. Since its inception, company has strived to develop and manufacture environmentally friendly bulk material conveying equipment that is tailored to the working environments of customers. As a factory, our product line includes not only complete sets of long-distance overland conveyors, tubular belt conveyors, troughed belt conveyors and radial telescopic stacker conveyors but also the critical conveyor parts. Currently, our bulk material conveyors have been extensively used in a number of industry sectors such as mining, chemical, coal plant, ore, thermal power plant, aggregate plant,cement factory, steel plant etc.
Zoomry has a quality inspection center consisting of a chemical lab, a hardness lab, a conveyor roller lab and a mechanical performance testing lab, having more than 60 testing equipment. All our belt conveyor systems are thoroughly examined to ensure that they meet or exceed the national standards, and their quality is compliant with ISO 9001 quality management system, ISO 14001 environmental management system and CEMA certification. We move the World! Welcome to visit our factory and contact me freely Zoomry Heavy Industry Co.,LTD
Wang xiaomeng || Salesperson
Product Description

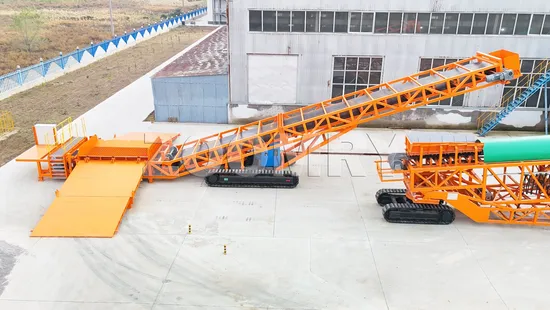

For most quarry sites and port facilities, client usually get truck unloaders for high efficiency material transportation from truck to ZOOMRY stackers / ship loaders. It can be wheeled type or crawler type. Truck unloader is an important machinery working with our ZRSF series Mobile telescopic stacker.
It have wheeled type and crawler type, it has a ramp for the dump truck to drive on so to dump the material into it.
There are two truck ramps or four truck ramps for choice.
Transportation capacity start from 200thp-1800tph. Belt width from 1400mm-1800mm.

Item	Model	Type	Belt width	Max. capacity	Optional configration
1	ZRLS-TU1400	Wheel type	1400 mm	200-1000 tons per hour	Radio control, 2/4 lines truck way, manual/ hydraulic ramp
2	ZRLS-TU1800	Wheel type	1800 mm	600-1800 tons per hour	Radio control, 2/4 lines truck way, manual/ hydraulic ramp
3	ZRLD-TU1400	Tracked	1400 mm	200-1000 tons per hour	Radio control, 2/4 lines truck way, manual/ hydraulic ramp
4	ZRLD-TU1800	Tracked	1800 mm	600-1800 tons per hour	Radio control, 2/4 lines truck way, manual/ hydraulic ramp

Undercarriage - Heavy-duty truck frame - Maximum of the conveyor discharge height reach to 5.8m. - Super heavy duty tires optional. - Air brakes, brake and directional lights, and mudfiaps are optional. - Hudraulic jacks to support Low position and easy reachable receive Hopper - Customized hopper size from 3.5m- 5.7m width to match all kinds of your wheel loaders or excavators with a widely opening - 5.0 kw-7.5 kW electric / hydraulic power pack - Optimized grid for kinds of aggregates or minerals Conveyor Frame - belt width from 800mm - 1600mm x length from 8m -20m conveyor - Heavy-duty frame special for heavy duty dump trucks - belt speed from 1m-4m per second - Screw type take-up Belt - EP belt special for truck unloader, EP100 (5+4+2 ), EP 200(6+4+3) - Site Vulcanized splice gives longer lifespan - Ground accessible start / stop push button controls, radio congtrol optional - China top brand belt which was widely used on all of our long distance belt conveyor - LESS power cable - 380-460 volt, 3 phase, 50/60 HZ power can be designed by client's site suituation Drive - 300- 2200 ton per hour unloading capacity - Dual 11 kW electric head end drive (1,800 RPM, TEFC 3/60/460) - Gear reducers adopt international brands like FLENDER / SEW - Backstops - Drive pulley - 20" [508mm] diameter ceramic lagged head pulley with Haerbin® bearings - Tail pulley - with Haerbin® bearings Idlers - Long life ZOOMRY idlers also for all of our long distance belt conveyor system projects - Impact idlers in the load area Options - Belt cleaner - Discharge hood - Wireless remote control - Hydraulic undercarriage lift cylinder - Hydraulic landing jack - On-board diesel GenSet - can be customized
