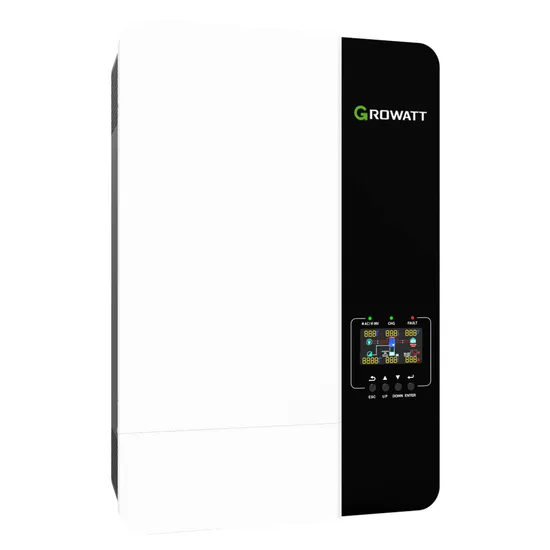

Growatt SPF 5000es with MPPT Outdoor Residential Solar Inverter WiFi 5kw off Grid Inverters

Product Description

Product Description This SPF 5000 ES inverter is an off-grid PV inverter with a 230VAC output voltage for backup power and self-consumption applications with a maximum PV input voltage of up to 450VDC. It can also work without batteries, saving system investment costs.

This is a multifunctional off-grid solar inverter that integrates MPPT solar charge controller, high frequency pure sine wave inverter and UPS function module, ideal for off-grid backup power and self-consumption applications. This inverter can work with or without batteries. Product Parameters

Datasheet	SPF5000ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	10000VA
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	120VDC ~ 430VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker	1/1
Maximum PV Array Open Circuit Voltage	450VDC
Maximum Solar Charge Current	100A
AC CHARGER
AC Input Current	80A
AC Input Voltage	230VDC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ;90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm
Net Weight	12kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0ºC~55ºC
Storage Temperature	-15ºC~60ºC

System Conection
How does it work
The above illustration shows basic application on of this inverter. It also includes following devices to have a Complete running system. - Generator or Utility - PV modules Consult with your system integrator for other possible system architectures depending on your requirements.This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner Intelligent Monitoring
* Open station supports one-click installation and registration
* Problem support one-click dispatch and navigation
* Safe operation, traceable logs, etc
* Support full lifecycle data storage to ensure data security and reliability . Factory
Growatt Factory Growatt is a global leader of smart energy solutions, provides residential, commercial and utility-scale PV inverters, The company is dedicated to becoming the world's largest supplier of smart energy solutions. Growatt has an advanced manufacturing plant in Shenzhen, China. The facility covers an area of 200,000 square meters and has an annual output of 20GW. Growatt is one of the world's top 10 inverter brands. Having its strong competitive advantages in distributed solar, the company is the world's. No.1 residential inverter supplier and it also ranks among the world's top 5 suppliers. Packaging & Shipping Package Details: In carton on pallet or wooden box. Delivery Details: 7-15 working days. Project Payment

Payment Term	T/T	EXW
		FOB
		CFR(CNF)
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	Western Union	Amount Lower than 5000usd
