Sausage Stuffer-Sausage Making Machine -Vacuum Filling Machine-Sausage Filler

Product Description

Sausage Making Machine Vacuum Sausage Stuffer
1. The sausage stuffer fill mince meat under vacuum state, preventing fat oxidation and proteolysis, reducing bacteria survival amount. Make the sausage has a longer shelf life, brighter color and pure taste.
2. Be equipped with automatic sausage twisting device for natural casing, collagen casing, smoke casing, sausage linker speed is 640pcs per minute.
3. Optional dual filling tube for plastic or nylon sausage casing. Work with sausage clipper machine form a automatic sausage production line.
4. Can fill dry minced meat and juice minced meat both.
Hopper Volume: 160L, 240L
Sausage Casing: Natural casing, collagen casing and smoke casing twisting.
Dual filling tubes option: The vacuum sausage stuffer can work with full-automatic sausage clipper machine.
Twisting speed: 640pcs/min(e.g 6g/pc); stepless speed regulating available.
Drive Model: AC Servo Motor
Twisting tube size: Φ10 Φ12 Φ14 Φ16 Φ19 Φ22MM (3 options)
Clipping and filling tube: Φ16 Φ22 Φ28 Φ30 Φ40MM (3 options)
Impeller, blade and pump body is designed with high hardness, high wear-resisting stainless steel and master body adopts 304 stainless steel.

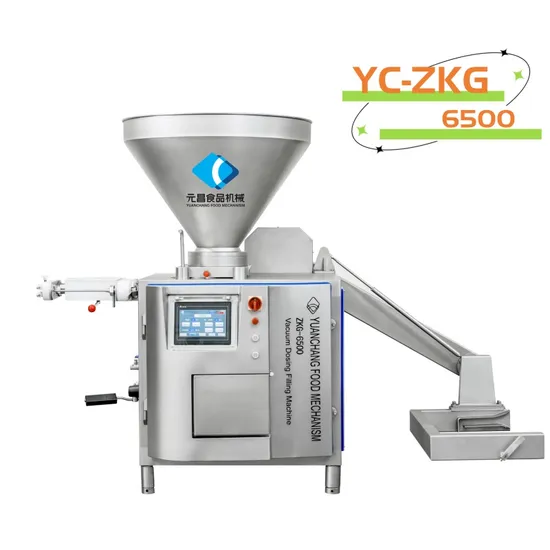

Here are ZKG Series Sausage Stuffer Details:
1. Sausage Linker Device. Twist the natural casing sausage, collagen casing sausage automatically and speedily.
2. The controller :Bus type motion controlle. You can set the filling speed, sausage weight, sausage linker number, vacuum or not..etc.
Touch screen, different language option, very friendly and easy operation.
3. Elevator. Two option, fixed or moveable. Load the mince meat into sausage stuffer hopper automatically. Improve working efficiency and save labour.
4. Filling Tube optional. If you use plastic sausage casing, remove the twisting device, connect filling tube. The sausage stuffer can work with sausage clipper machine automatically.
The entire servo system is composed of Taiwan's Delta, and other brands can also be customized according to your needs. Key parts produced by machine center with high precision. All of pump, impeller and blade have are adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.

model	Quantitative Rang(g )	Power (KW)	Quantitative Error Rage(meat paste)(g )	Hopper Capacity(L )	Voltage(V )	Weight(Kg )	Size(mm )
ZKG-3500	6-99999	9.5	±2	240	380	630	2450*1180*1800
ZKG-6500	6-99999	10.8	±2	240	380	850	2450*1180*1800
ZKG-9000	6-99999	12.5	±2	240	380	1100	2450*1180*1800

This filling machine is highly versatile: it can connect and combine with a double clipper machine, twisting machine, forming machine, packaging machine, etc., to accommodate different product requirements.
