Plastic Raw Material Mixer Machine for Plastic Granules

Product Description

Product Description of plastic mixer
SRL-Z series mixer unit is applicable for mixing,colouring and drying of various resin such an PE,PP,PVC etc and in the craft of engineering
plastics such as ABS,PC etc before forming and processing as well as in the mixing of phenolic resin.The unit combines heat mixing and cool
mixing craft together .The materials after heat mixing can be go into cool mixer for cooling automatically,exhausts remaining gases and prevent
agglomeration .

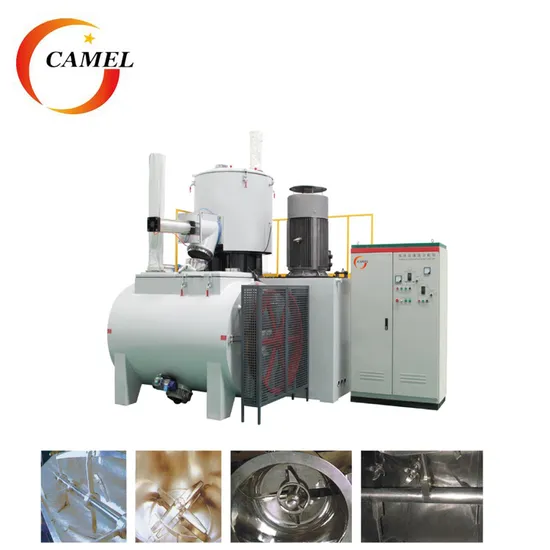

The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet.
We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction.
The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.
If you need the PVC mixer, please tell us the output you expected per hour, we will recommend the right model for you.
High quality, good price and reliable performace. Sunrise Machinery expects to be your plastic machines supplier.
Features :
1.advanced design,easy operation.
2. high efficiency ,low energy consumption.
3. low noise and corroision resistance
Main Technical Parameter ( Vertical Cooler) for your reference:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	2500*2000*2200	4580*2240*2470	4800*2640*2480	5600*3000*3100	6230*4230*4480
Weight(kg)	2500	3600	4500	5800	8300

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
