Commercial Fastlane Tripod Turnstile Gate Automatic Security Entrance Gates

Product Description

Product Description Product Introduction

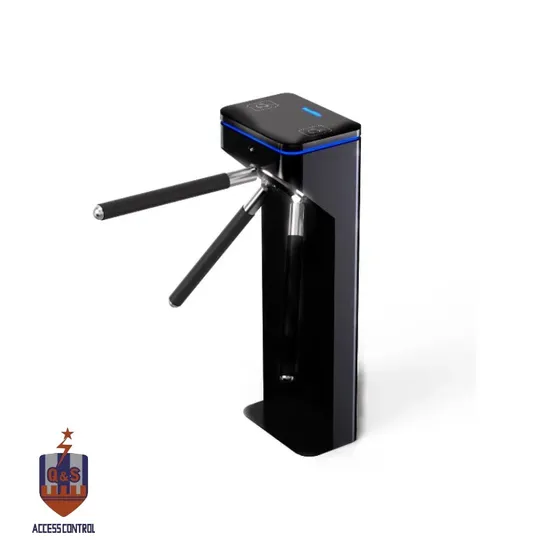

The Vertical Tripod Turnstile is constructed with SS304 stainless steel, offering a compact, durable, and corrosion-resistant design. It supports RFID card recognition, enabling fast and secure pedestrian access. With its sleek design, it is ideal for office buildings, factories, schools, gyms, and other access control applications, providing an efficient solution for passage management.
Functions & Features
1.GB 304 stainless steel sheet metal forming, beautiful, durable
2. Brake lever steering: one way, two-way (optional)
3.Control mode: manual / automatic (optional)
4. Can mount a variety of control devices: metal security gate/IC card/ID card/card/barcode card, etc
5. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact
6. Super bright passage indicator. directional design of ultra- bright LED lights to indicate a more eye catching
7. Automatic access function: the reader automatically run after the brake lever to unlock certain angle,automatically bring people through the gates
8. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;
9. Power off the pole, the power from the bar features: gates automatically after power brake lever to facilitate evacuation fall to meet fire safety requirements; (automatic type)
10. Remote control: RS485 card can be accessed by computer or TCP to RS485 remote control gates
11. Automatic reset function: by credit card is not specified, within the time gates back in situ cancel access.
Product Parameters

Power Requirements	AC 100V to 120V or 200V to 240V, 50/60Hz	Power Consumption	Runnin:18WStandby:6W
Working Temperature	-28 °C - 60 °C	Working Humidity	5% to 80% (Non-condensing)
Speed of Throughput	RFID:Maximum 30/minuteFingerprint:Maximum 25/minute	Lane Width (mm)	500-650 ( mm )
Dimension (L*W*H)	520*310*1010 ( mm )	Dimension with Packing (L*W*H)	570*365*1080 ( mm )
Net Weight (kg)	36 kg	Weight with Packing (kg)	50 kg
LED Indicator	Supports	Cabinet Material	SUS304 Stainless Steel
Lid Material	SUS304 Stainless Steel	Barrier Material	SUS304 Stainless Steel
Barrier Movement	Rotation	Emergency Mode	Supports
Security Level	Medium	MCBF	1 million
Options / Accessories	Counter, SUS316 Cabinet and Lid, Remote Control	Warranty	2 year

Product Detail
Customize extended functions:
1. Counting and alarm functions;
2. Case material is 304 #, other materials can also be customized
3. Remote control switch
4. Dynamic integrated face recognition
5. Emergency escape function can be added to open the gate by remote button in
case of special emergency
6. Box thickness standard 1.5mm
7. Fingerprint recognition of time attendance
8. QR code
About us →QSaccesscontrol® business
*Boom Barrier
*Turnstile
*Access control
*Sliding gate motor
*Bollard
*Parking lock
*Parking system
→QSaccesscontrol®Technical
QSaccesscontrol®products are designed in our technical department by a team of highly-skilled engineers - we offer competitive solutions without compromising on quality. Over the years, QSaccesscontrol® has grown with our customers requirements and the market demand. We're just as passionate about growing and developing our products for your inquiry.
Packaging & Shipping
FAQ FAQ:
1. Do you have full automatic tripod turnstile?
---- I Yes. All semi-automatic tripod can be changed to full automatic, there is extra costs to do it.
2. How about your company's actual strength?
---- We are the top 5 in turnstile field in China. We have more than 50 employees, a R&D group with 4 people, 1 office and 2 factories.
3.How about the quality of your products?
----We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
4. How do you do after-sale service?
----We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
5. How about the payment method?
----Standard products: 30% deposit, 70% balance payment before shipment.
6. How about the lead time?
----Normally we have stock for the hot sale models of standard products. Regular products need 7-10 working days. The customized products need 15-20 working days.
7.How long is your warranty period?
----Two-years guarantee & Life-time technology support.
8 .How about your package?
----Seaworthy wooden case + Foam.
